A cnc main gate design uses MS sheet cut by a laser or plasma machine into a pattern, then welded into a tube frame. The machine cuts the same pattern again and again with clean edges, so even busy jali work looks neat.
This page has 12 ideas: jali gates, floral panels, geometric cuts, plain sheet and ACP gates, and louvers. Each picture lists the size, frame tube, sheet gauge and finish. Cut patterns never include names or words here; ask for a separate name plate instead.
Main Gate Jali Design with CNC Cutting
A main gate jali design cuts a repeat pattern into the whole sheet, like old stone jali screens. It gives privacy in the day and throws a nice pattern of light at night. This is the most asked for cnc cutting main gate design.

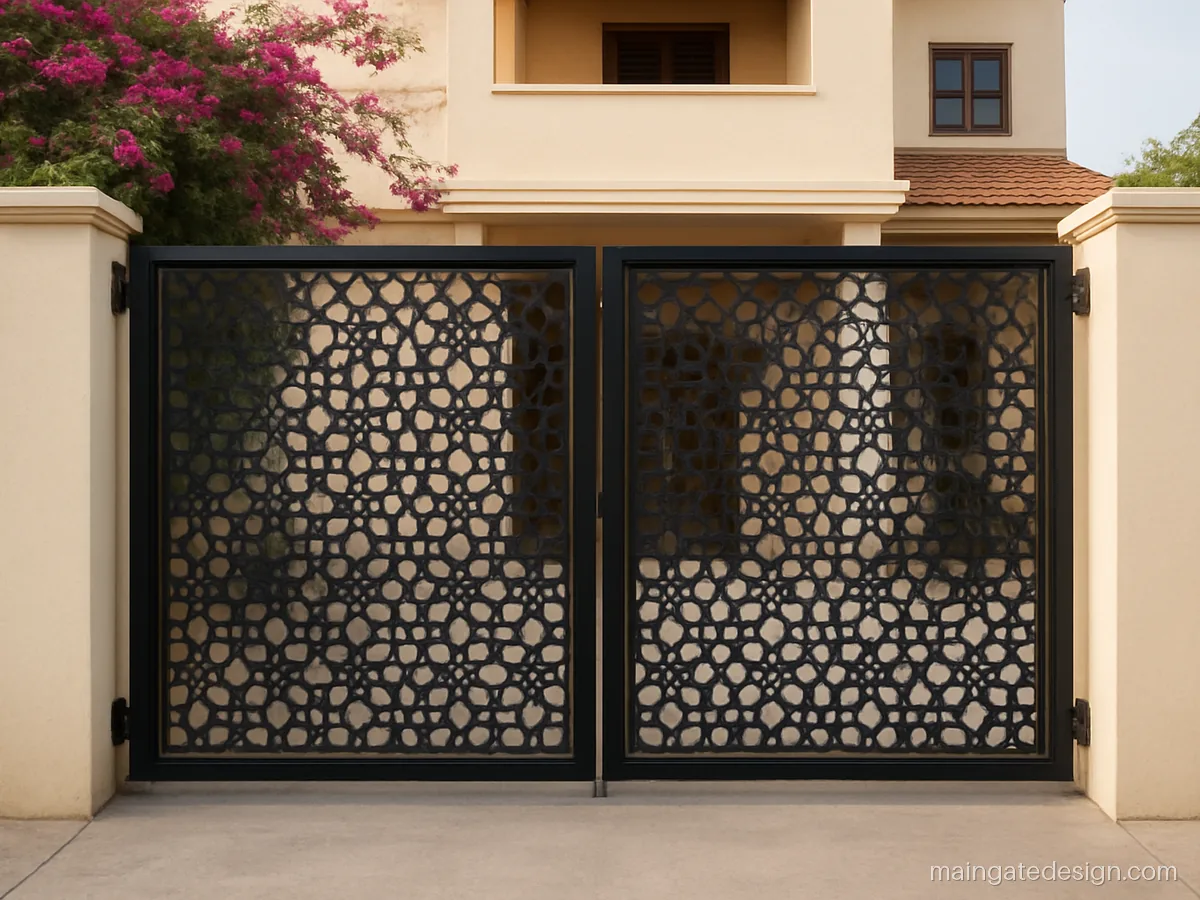

| Size | 12 x 7 ft, double |
|---|---|
| Material | MS 50x50 + 14g sheet |
| Finish | Black PU, gold edge |
An eight point star jali over the full height of both leaves. The small holes block the view from the road but let wind through.
Fabricator tip: Use 14 gauge sheet for a jali this open, and add a middle stiffener tube so the sheet does not drum.
| Size | 11 x 6.5 ft, double |
|---|---|
| Material | MS 40x40 tube, 16g sheet |
| Finish | Graphite grey PU |

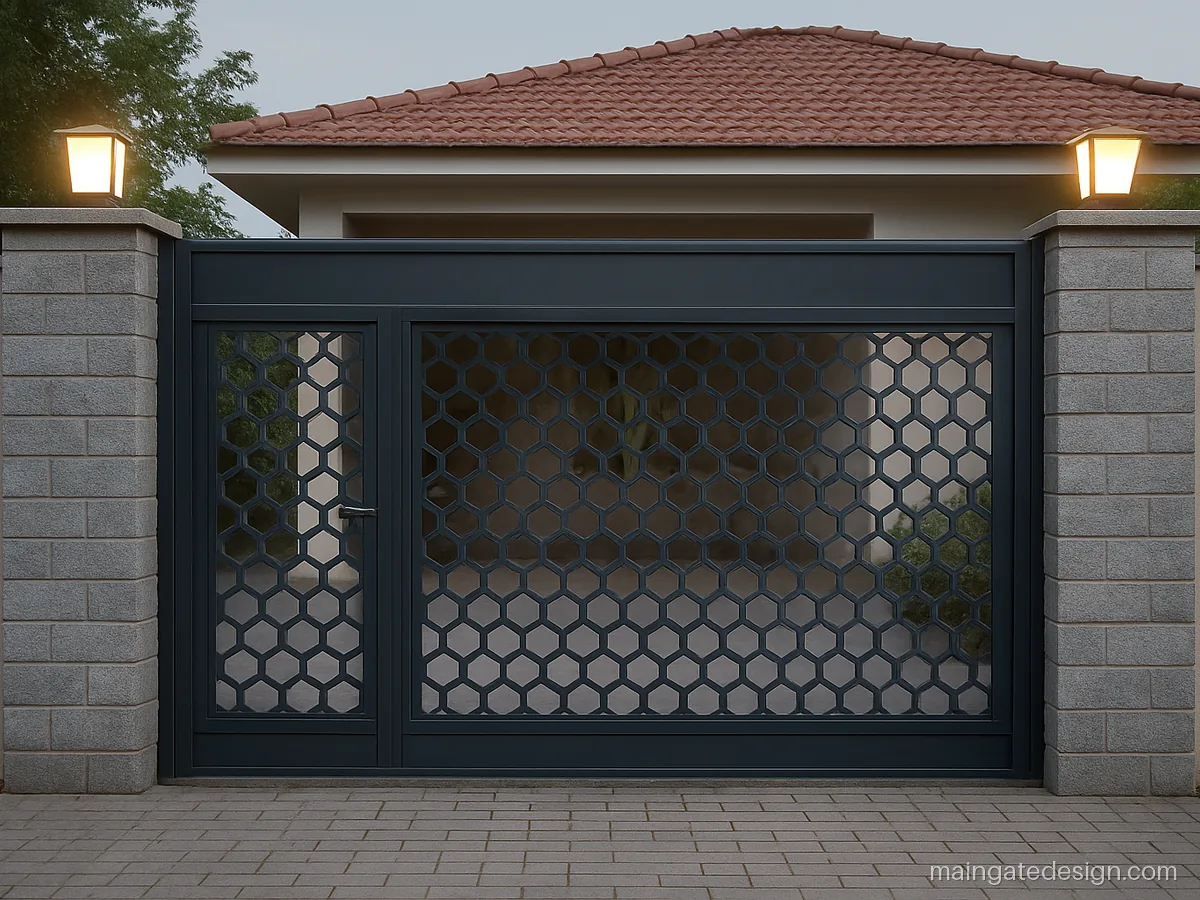

A hexagon jali with a walk in wicket door cut into one leaf. You open the big gate only for the car.
Fabricator tip: Frame the wicket door in its own tube box with two hinges, never just a cut flap in the sheet.
| Size | 10 x 7 ft, sliding |
|---|---|
| Material | MS 50x25 + 16g sheet |
| Finish | White PU, warm LED |

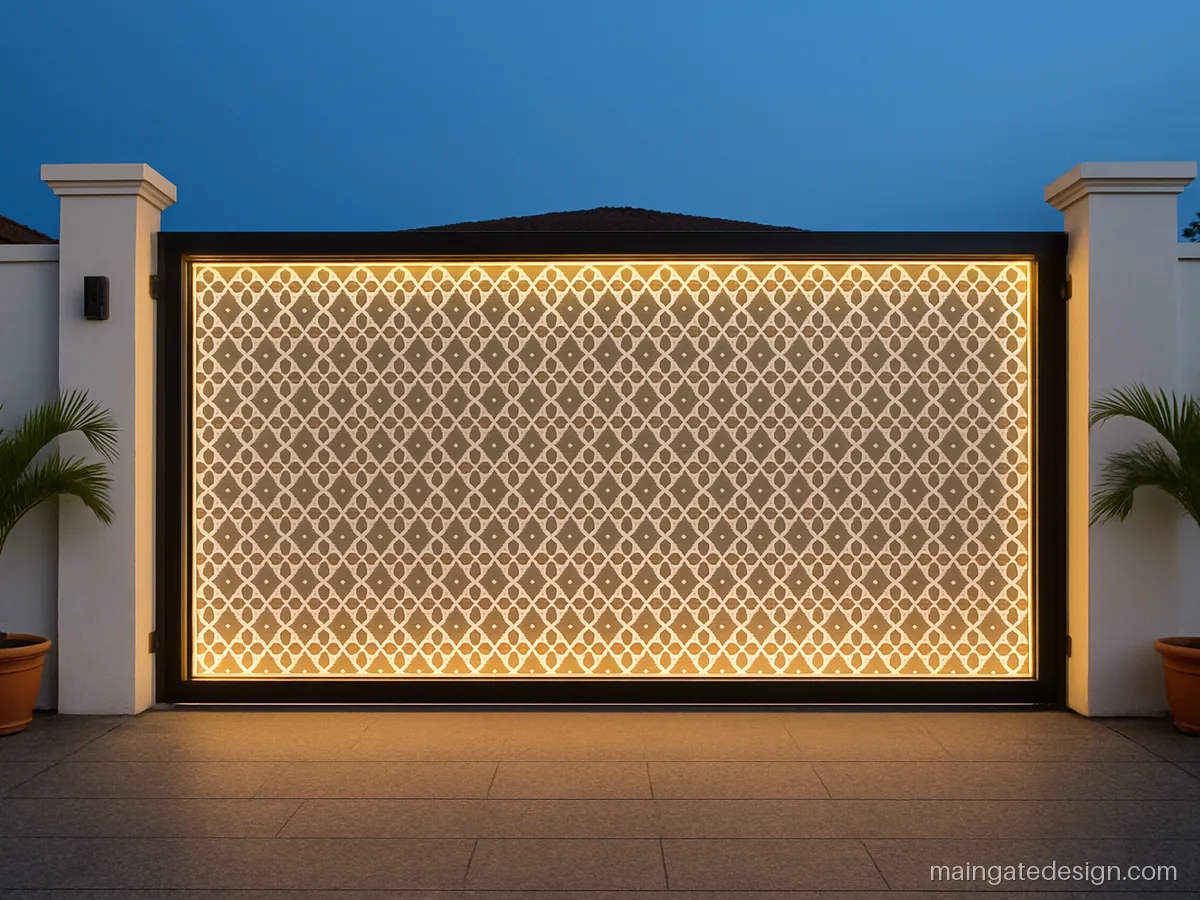

A Moroccan lattice in white with LED strips behind the sheet. At night the jali glows, which also lights the entry.
Fabricator tip: Ask for a closed channel behind the sheet for the LED strip and a drip slot so rain water drains out.
Laser Cutting Main Gate Design with Floral Panels
Floral work is the softest main gate design laser cutting can give, and it suits traditional homes. Keep the flowers large. Small petals clog with dust and rust first. The iron main gate page has more mixed bar and sheet styles.
| Size | 10 x 6 ft, double |
|---|---|
| Material | MS 40x40 + 16g sheet |
| Finish | Maroon, gold tips |

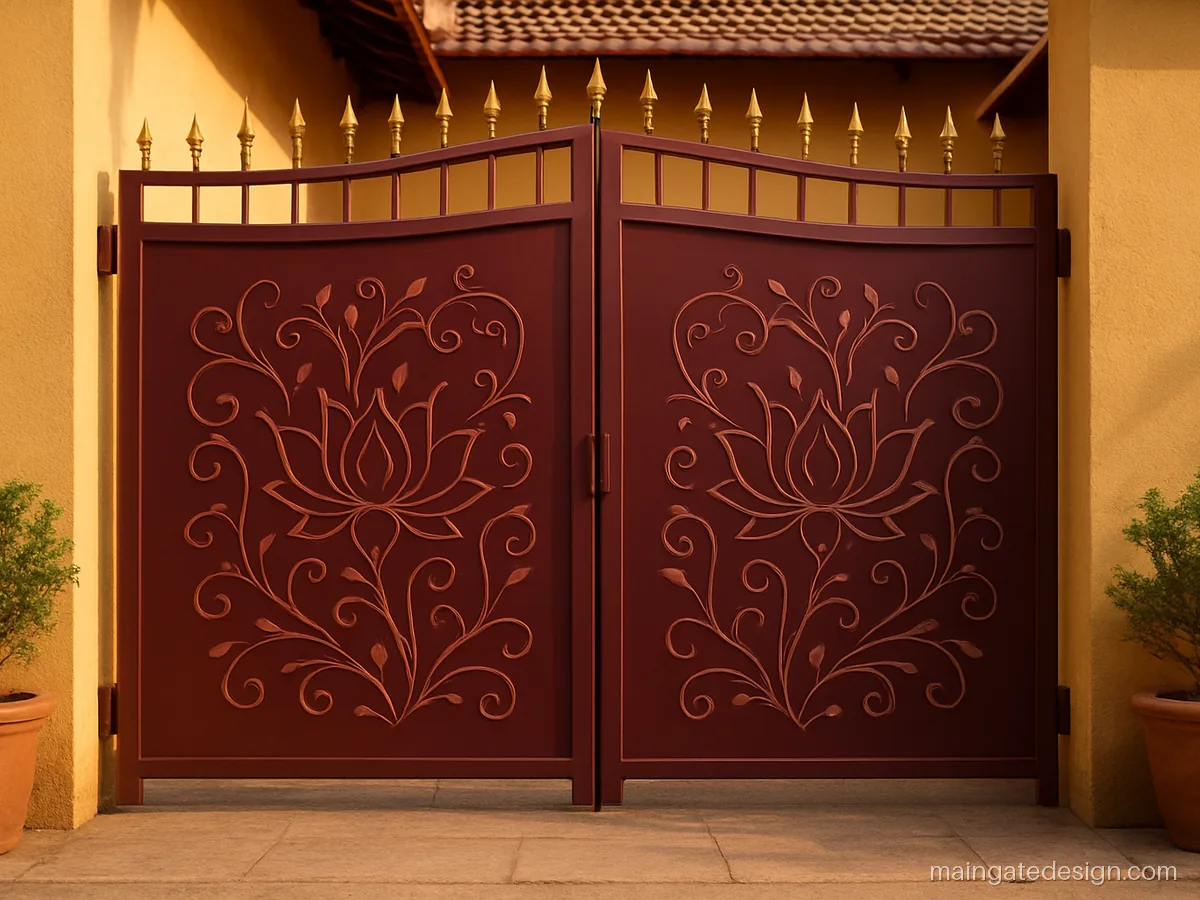

A lotus and vine panel set in the middle of each leaf, with plain bars above. Maroon and gold suits a traditional front.
Fabricator tip: Keep petal gaps at least 6 mm so paint can reach inside; tiny cuts fill with paint and rust.
| Size | 9 x 6 ft, double |
|---|---|
| Material | MS 40x20 tube, 16g sheet |
| Finish | Teal PU |

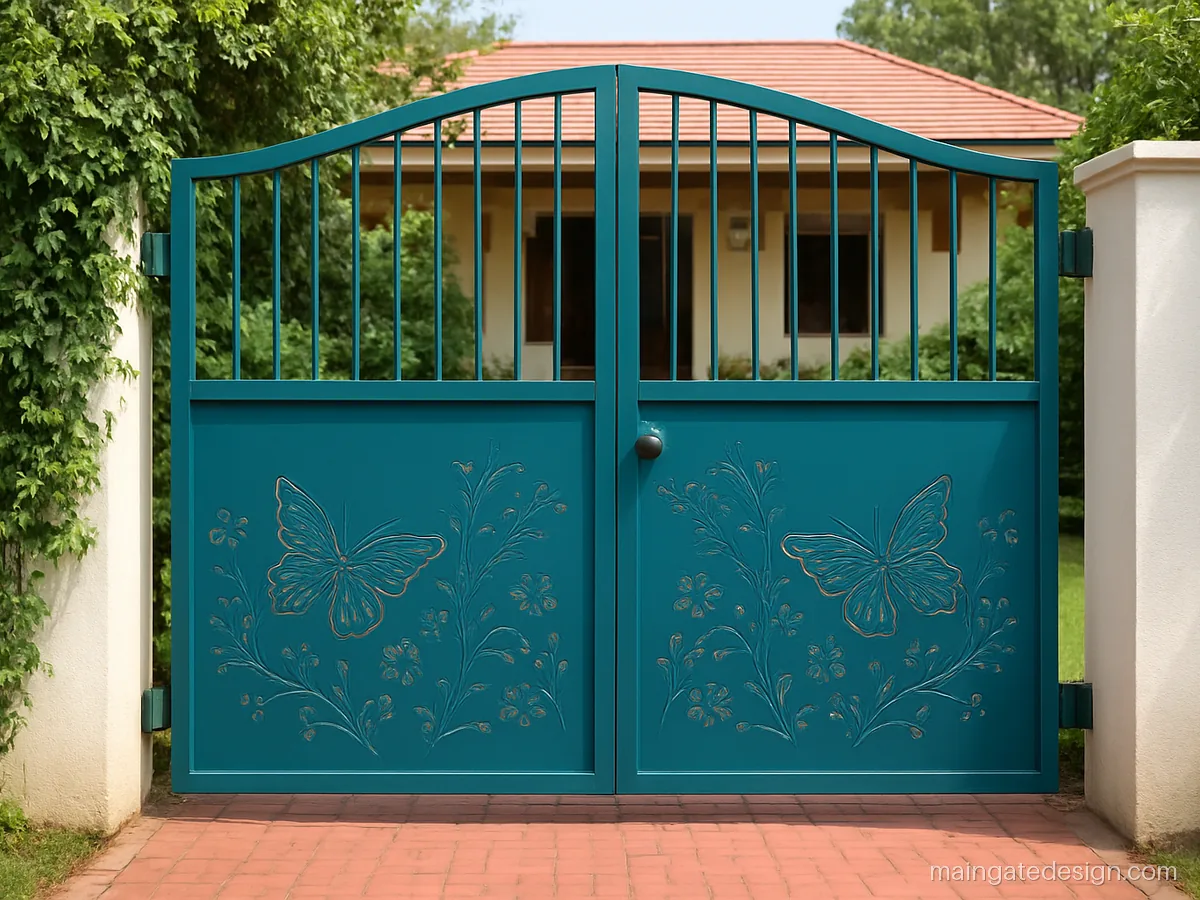

Butterflies and small flowers spread across the lower half of the gate. A cheerful choice for a bungalow with a front garden.
Fabricator tip: Ask the CNC shop for a sample cut of one butterfly first, to check the detail before cutting full sheets.
| Size | 12 x 7 ft, double |
|---|---|
| Material | MS 50x50 tube, 14g sheet |
| Finish | Black, wood foil frame |

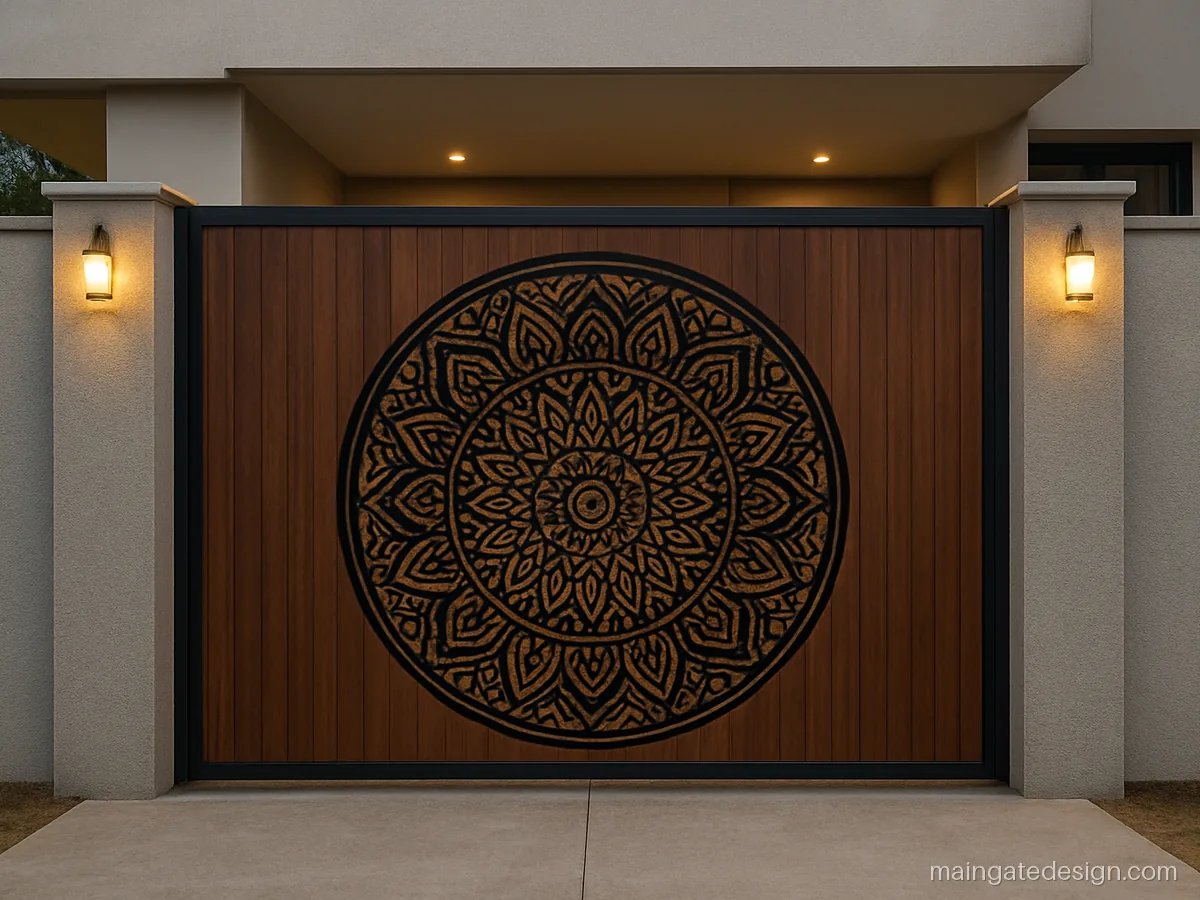

One big mandala panel across both leaves, framed by wood finish strips. It reads well from a distance.
Fabricator tip: Line up the mandala halves on both leaves before welding; ask for a dry fit on the floor first.
Geometric CNC Design for Main Gate
Geometric patterns match modern box style houses. A main gate laser cutting gate design in squares or lines cuts faster than floral work and lines up easily across two leaves. A 7 x 7 ft gate, often searched as a "77 main gate", is common for narrow plots, and these patterns scale well to it.
| Size | 14 x 6 ft, sliding |
|---|---|
| Material | MS 50x50 + 16g sheet |
| Finish | Matt black PU |

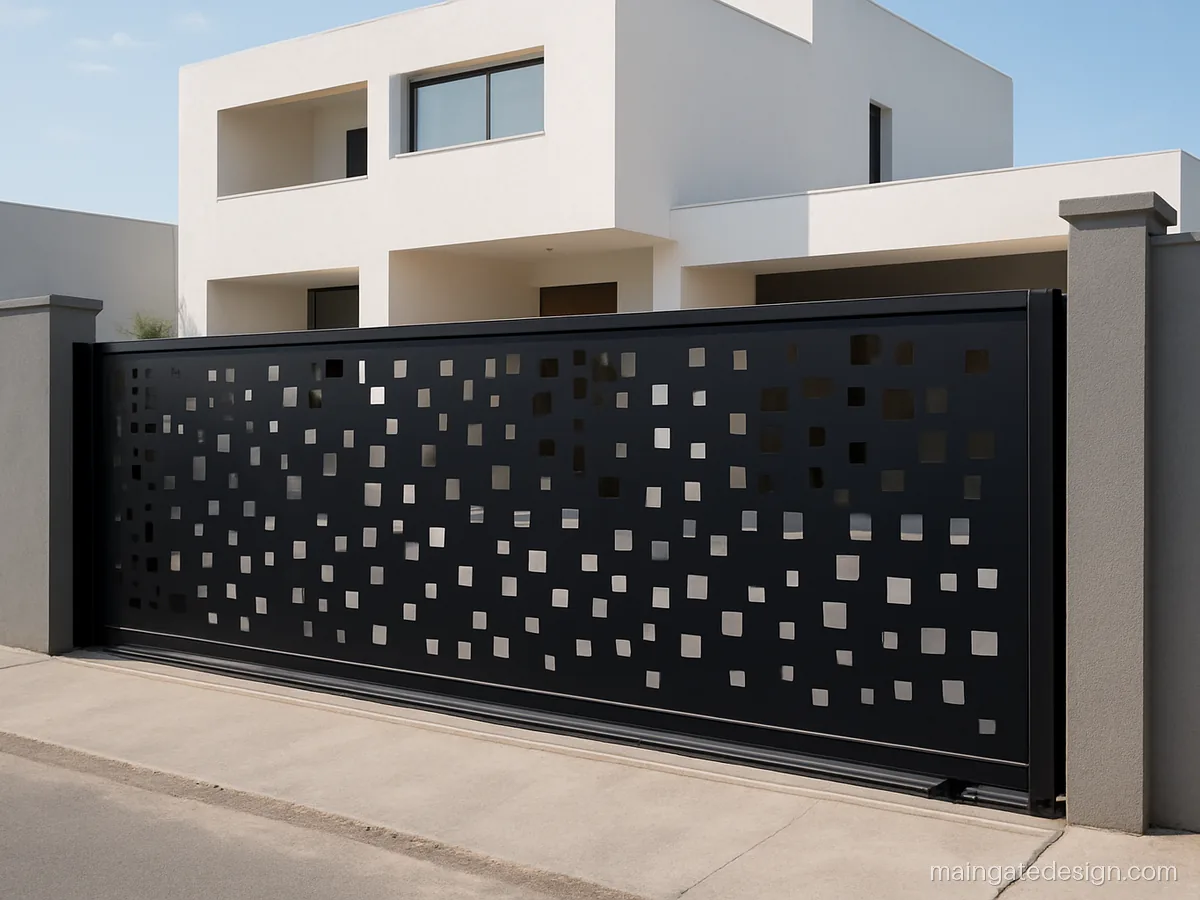

Offset squares of different sizes on a sliding gate. The pattern hides the track joint and suits a flat roof house.
Fabricator tip: For sliding gates ask for V groove wheels, a fixed track on a concrete bed and an end stopper.
| Size | 10 x 7 ft, double |
|---|---|
| Material | MS 50x25 + 16g sheet |
| Finish | Copper metallic PU |

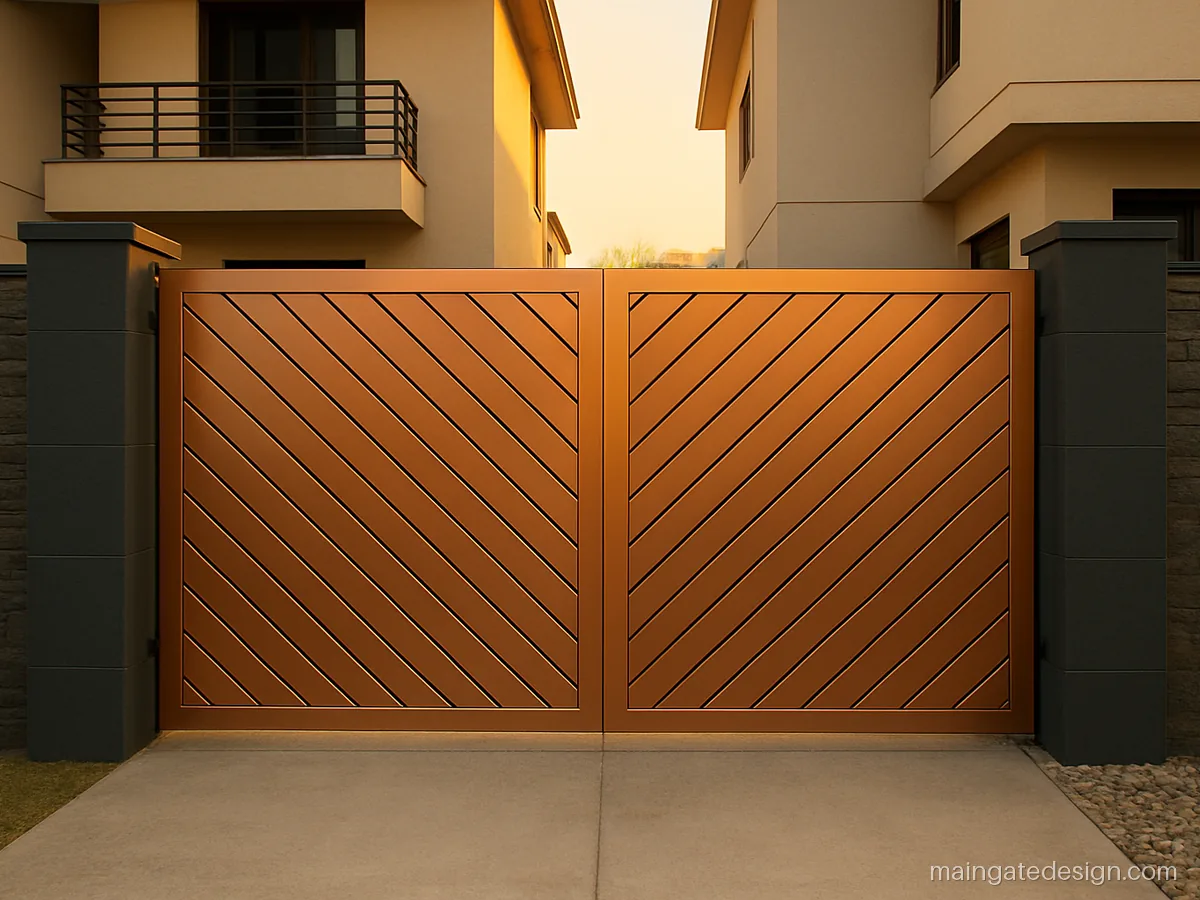

Long diagonal slots meet at the centre line when both leaves close. Copper colour looks warm against grey walls.
Fabricator tip: Ask for the slots to stop 2 inches short of the frame so the sheet stays rigid at the edges.
| Size | 7 x 7 ft, single |
|---|---|
| Material | MS 40x40 tube, 16g sheet |
| Finish | Olive green PU |

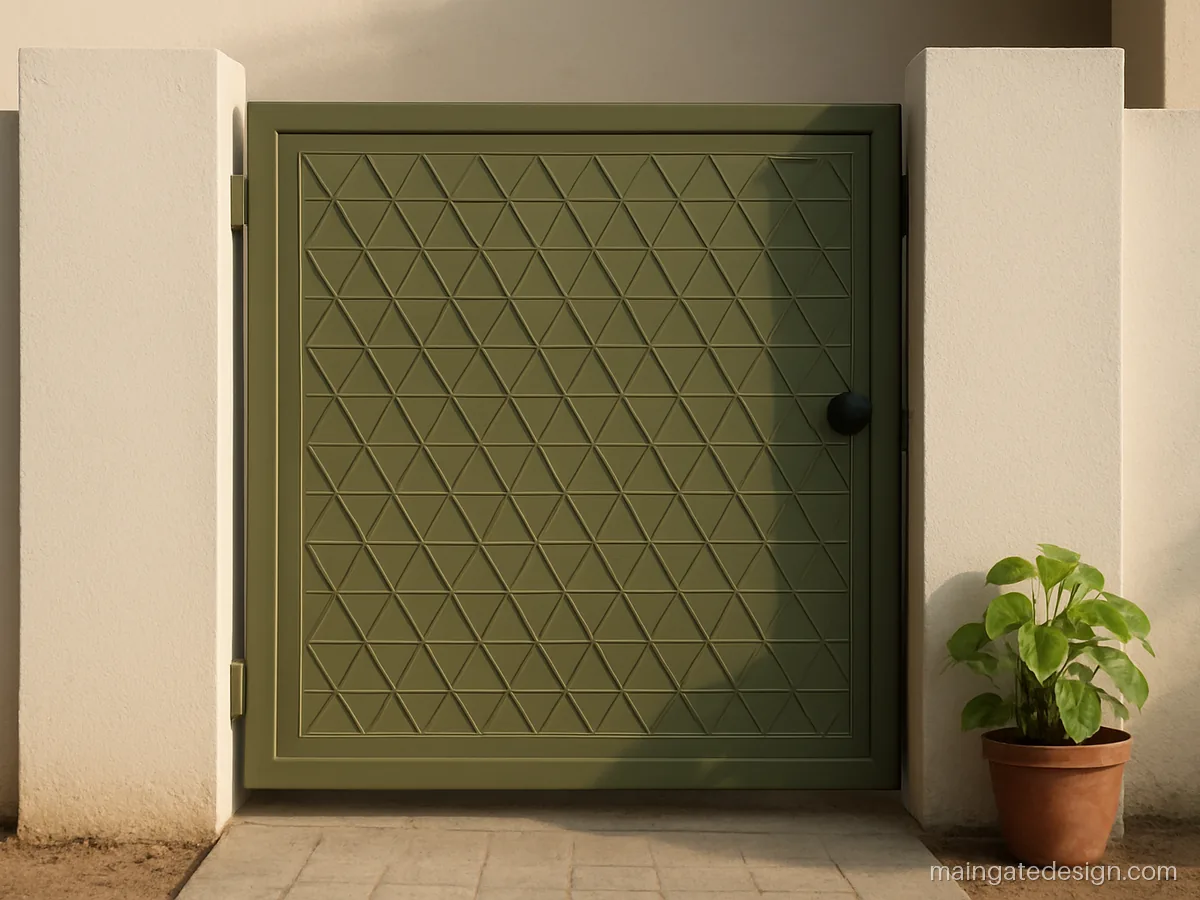

A small triangle cut pattern on a single 7 ft square leaf. Right for a narrow plot where only bikes go in.
Fabricator tip: A 7 ft single leaf needs three heavy hinges and a wheel or a gate support at the free end.
ACP Sheet and Louvers Main Gate Design
Sheet gates give full privacy. An acp sheet main gate design or plain MS chadar gate costs less to cut than a jali. Louvers give privacy with air. See modern main gates for more box style ideas.
| Size | 12 x 7 ft, sliding |
|---|---|
| Material | MS 50x50 frame, 4mm ACP |
| Finish | Walnut ACP, black trim |

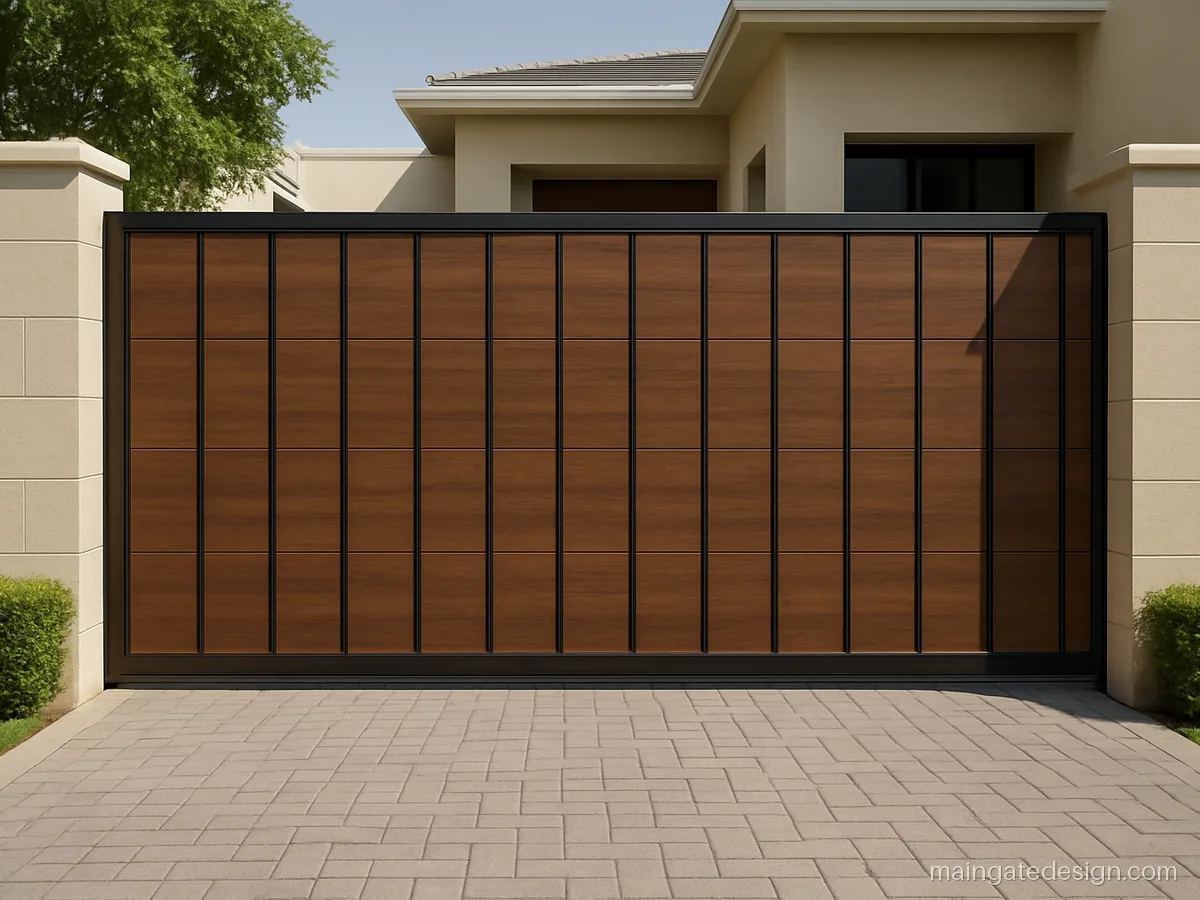

Wood grain ACP fixed on an MS frame with thin black dividers. It looks like timber without the swelling and termites.
Fabricator tip: ACP must be riveted or screwed to a primed MS frame with gaps for expansion, not glued alone.
| Size | 10 x 6 ft, double |
|---|---|
| Material | MS 40x40 + 16g sheet |
| Finish | Dark blue enamel |

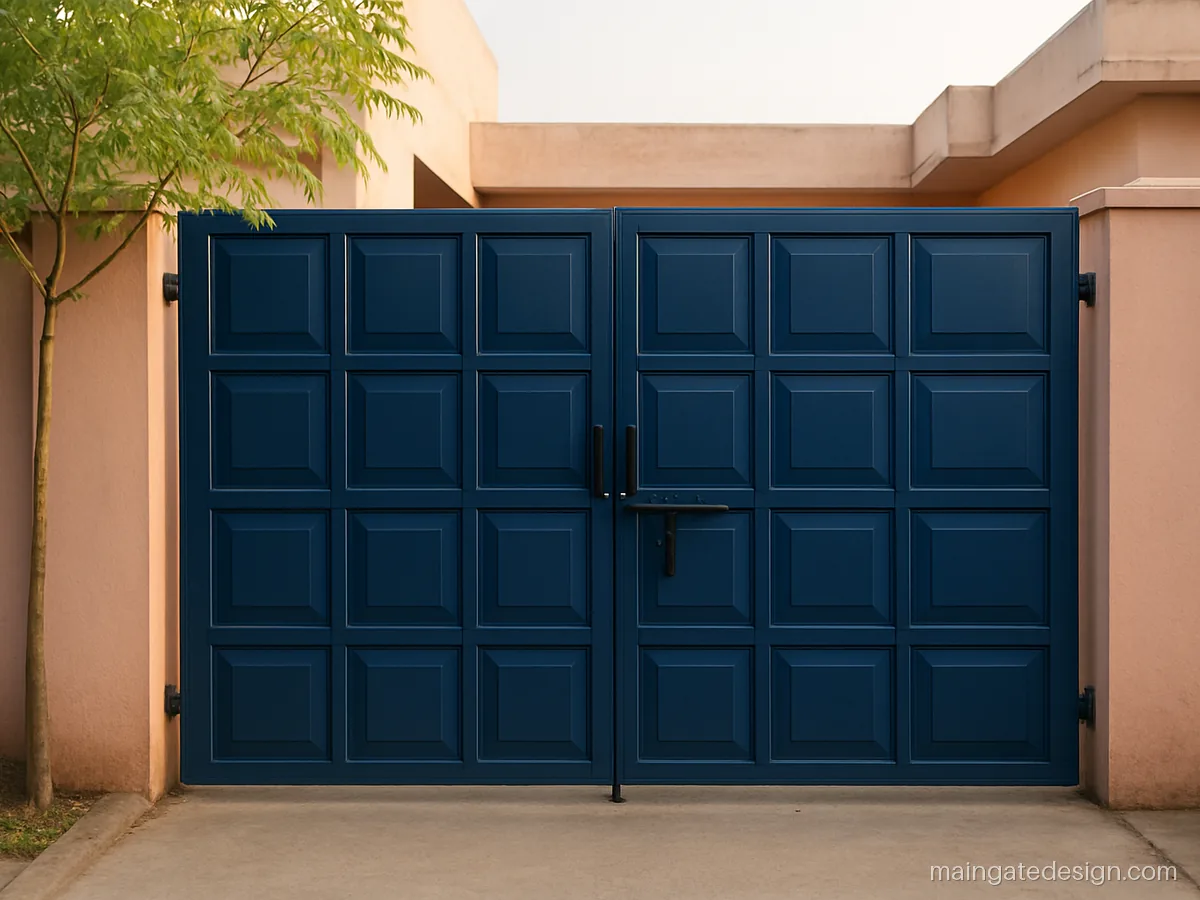

A plain sheet gate with pressed box panels, the classic chadar style. Simple, strong and easy to repaint.
Fabricator tip: Weld sheet with stitch welds on both sides and leave a 2 inch drain gap above the ground.

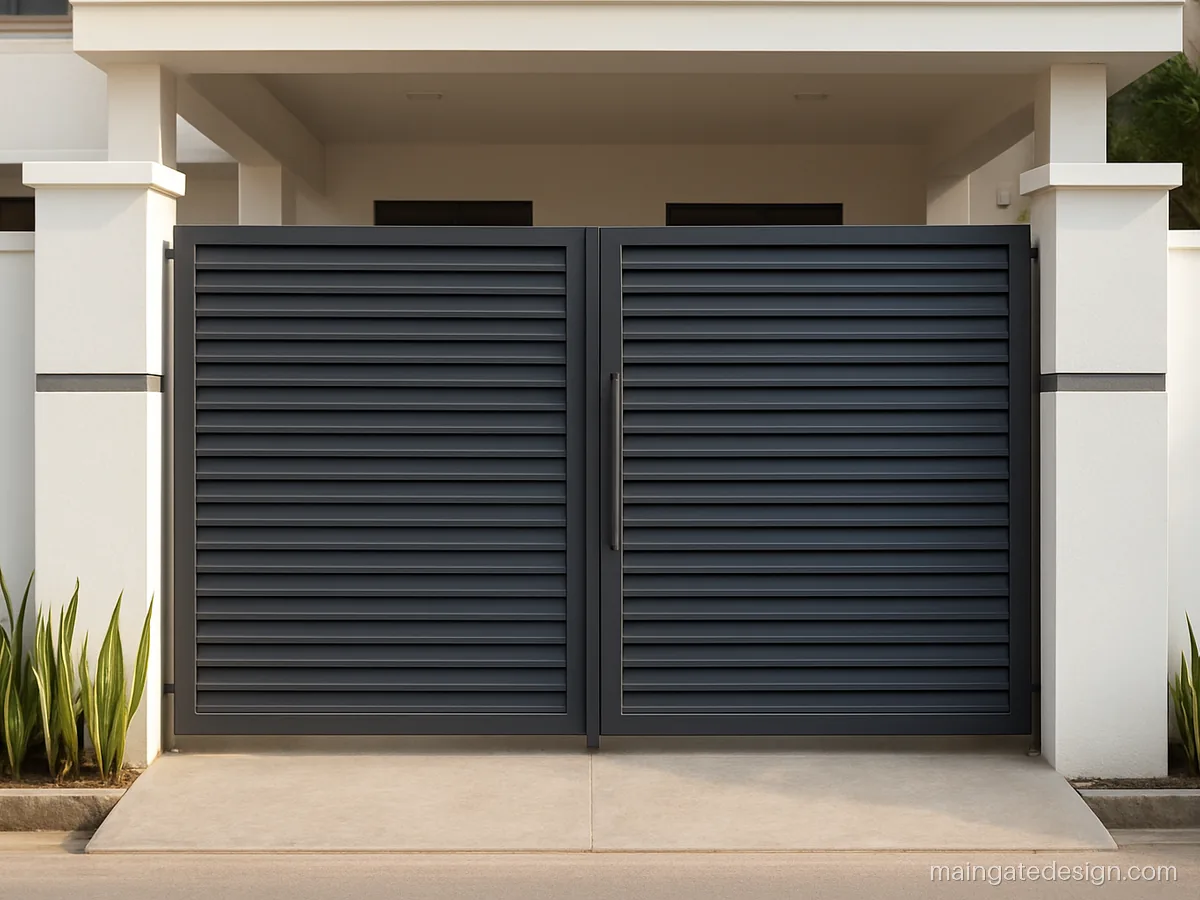

| Size | 11 x 7 ft, double |
|---|---|
| Material | MS 50x50, 75mm slats |
| Finish | Anthracite grey PU |
Angled slats block the view from the road but still let wind pass. Good for hot cities and corner plots.
Fabricator tip: Keep slats at a 45 degree angle and paint them before welding, since the backs are hard to reach later.
How to Choose a Main Gate CNC Cutting Design
Pick by how much privacy you want and how much dust your road has.
| Type | Privacy | Sheet | Notes |
|---|---|---|---|
| Open jali | Medium | 14 gauge | Needs a stiffener in the middle |
| Floral panel with bars | Low to medium | 16 gauge | Keep petals large |
| Geometric | Medium to high | 16 gauge | Easy to match across leaves |
| Plain chadar | Full | 16 or 18 gauge | Lowest cutting cost |
| Louvers | High, with air | Slats from 16 gauge | Good in hot areas |
A gate in solid sheet catches wind like a sail. For tall or wide sheet gates, use a 50x50 mm frame, strong pillars and a good foundation. See pillar designs for sizes.
What to Tell the Fabricator and Paint Care
- Sheet gauge in writing, 14 or 16 for cut panels.
- All cut edges ground smooth before primer.
- Zinc or epoxy primer, then two coats of PU. Powder coating lasts longer if the shop can bake the full leaf.
- A drain gap of 2 inches at the bottom and no closed pockets where water can sit.
Cost is worked out from the weight of frame and sheet multiplied by the rate per kg, plus the CNC cutting charge, which is usually by area or by machine time. Add paint, hinges or wheels, lock, fitting and transport. Near the sea, check every cut edge each year and touch up any brown spots at once. Compare with steel gates if rust is a worry.
Main gate questions
What is the best sheet thickness for a laser cutting main gate design?
Most gates use 16 gauge MS sheet for panels. For an open jali over the full gate, 14 gauge is safer because it does not bend or rattle. 18 gauge is only fine for small inset panels.
Is a main gate jali design good for privacy?
Yes, if the holes are small. From the road you see the pattern, not the inside of the house. At night, with lights inside, a jali shows more, so add a sheet backing if needed.
How is a cnc main gate design priced?
The fabricator adds the weight of tube and sheet times his rate per kg, the cutting charge by area or by time, and paint, hinges, lock and fitting. Busy patterns take more machine time, so they cost more to cut.
Is an acp sheet main gate design good for outdoor use?
It works if the ACP is an exterior grade and fixed on a primed MS frame with rivets or screws. Keep the bottom edge off the ground so it does not soak water.
Do louvers main gate designs let air in?
Yes. Angled slats block the straight view but let air move through. They suit hot cities and houses where the gate faces the main sitting area.
