A modern main gate design is about clean lines, honest materials and fewer fussy curls. This gallery shows 15 original gates with notes you can show your fabricator, from slat gates and flat panels to royal gates with gold tips.
Every design here can be built in MS (mild steel) by a local welding shop. Sizes, sections and finishes are written under each photo, so the fabricator knows what you mean. If you are on a tight budget, start with our simple low cost main gate page, then come back for ideas.
Searching for home main gate new loha door design ideas? The second group below is just that. Use these as a main gate new design starting point and change colour or size to suit your plot.
Modern Main Gate Design With Horizontal Slats
Horizontal slats are the look most people ask for when they say modern. They make a plot look wider and hide the porch well when the gaps are kept small.
| Size | 14 x 6 ft, sliding |
|---|---|
| Material | MS 50x25 tube slats |
| Finish | Charcoal PU matt |

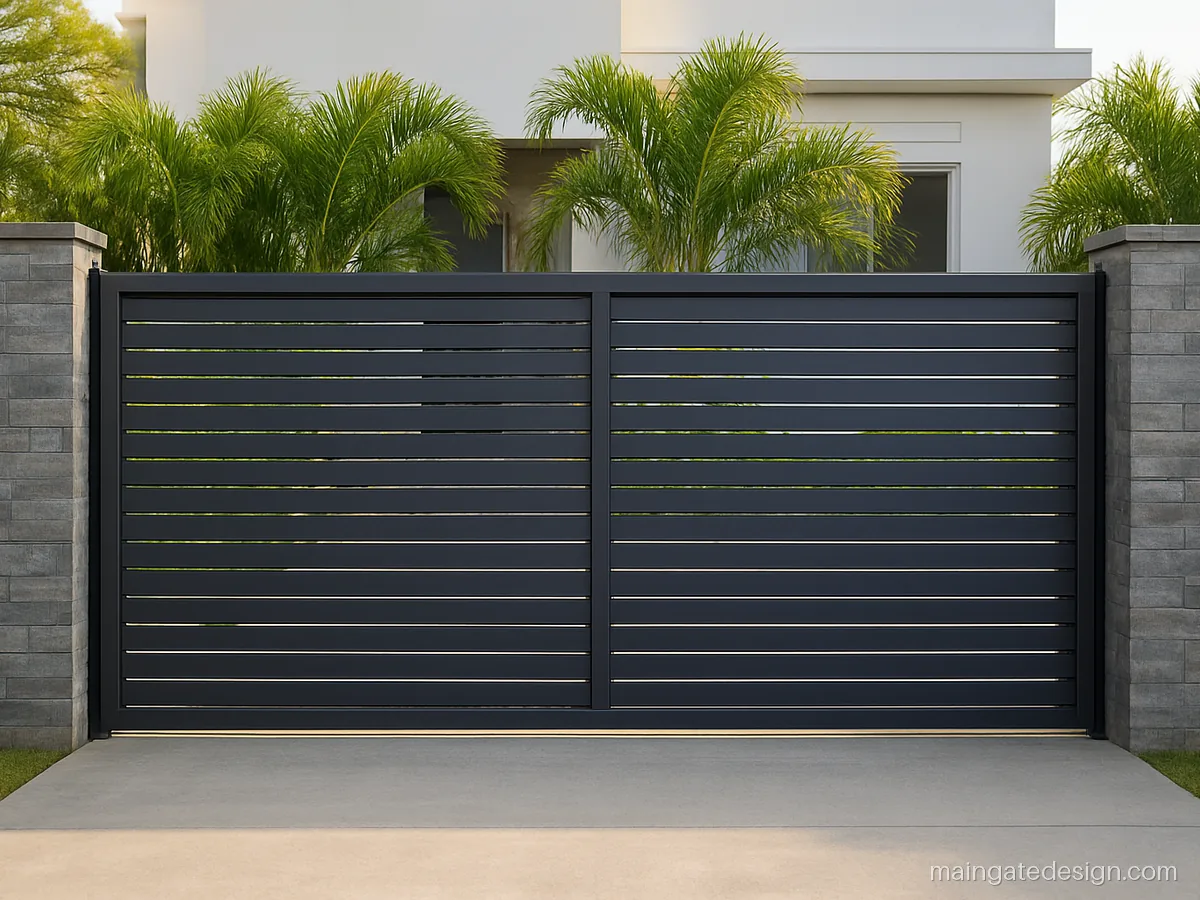

Long charcoal slats with a 20 mm gap give privacy without making the front feel heavy. Good for a corner bungalow with a wide frontage.
Fabricator tip: Weld slats inside a 75x40 frame, use a V-groove track with a floor drain, and fit a stopper at both ends.
| Size | 11 x 6.5 ft, double |
|---|---|
| Material | MS frame + MS slats |
| Finish | Wood-grain coat, black |

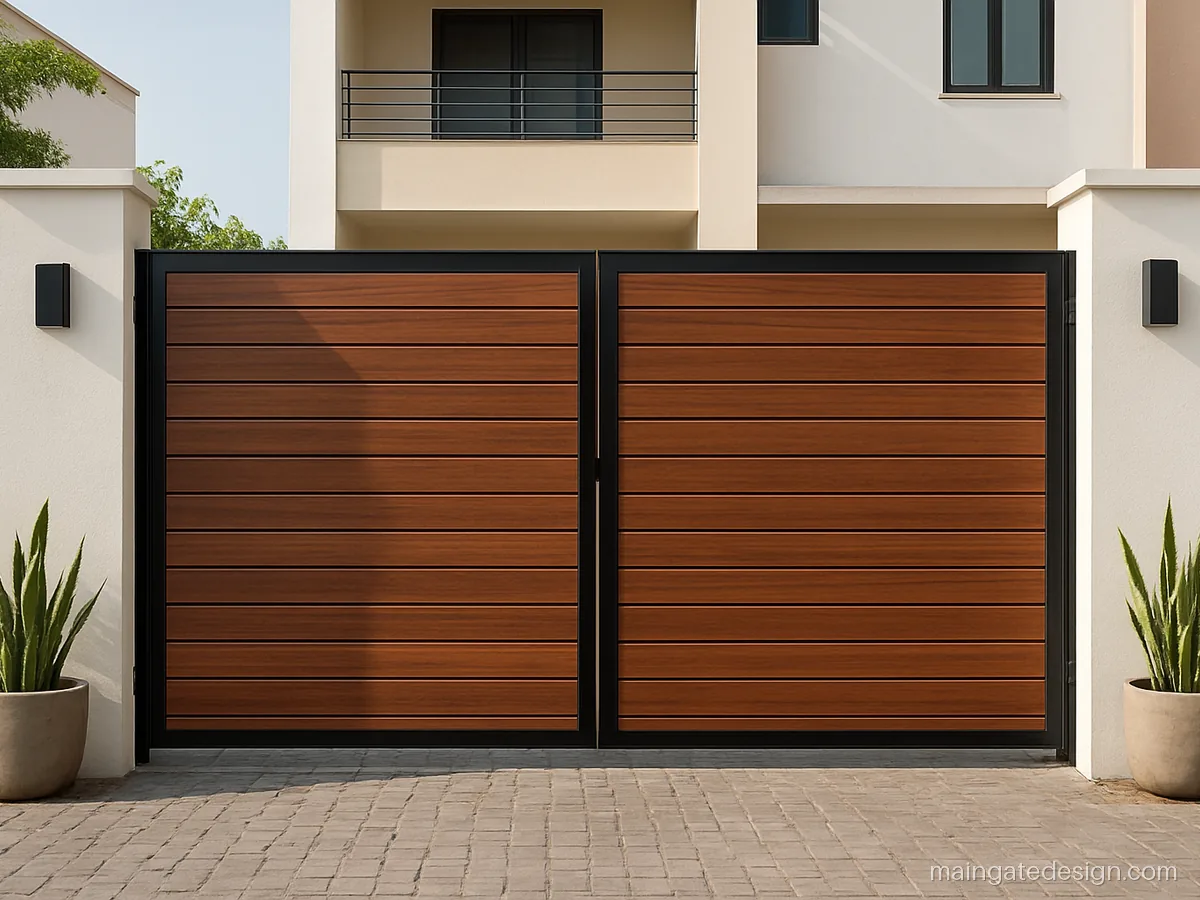

Teak-look slats warm up a plain white house, and the black frame keeps the lines sharp. Wood-grain coating on MS is cheaper than real wood and does not swell in rain.
Fabricator tip: Ask for slats cut to equal width, primer on all sides before coating, and three hinges per leaf.

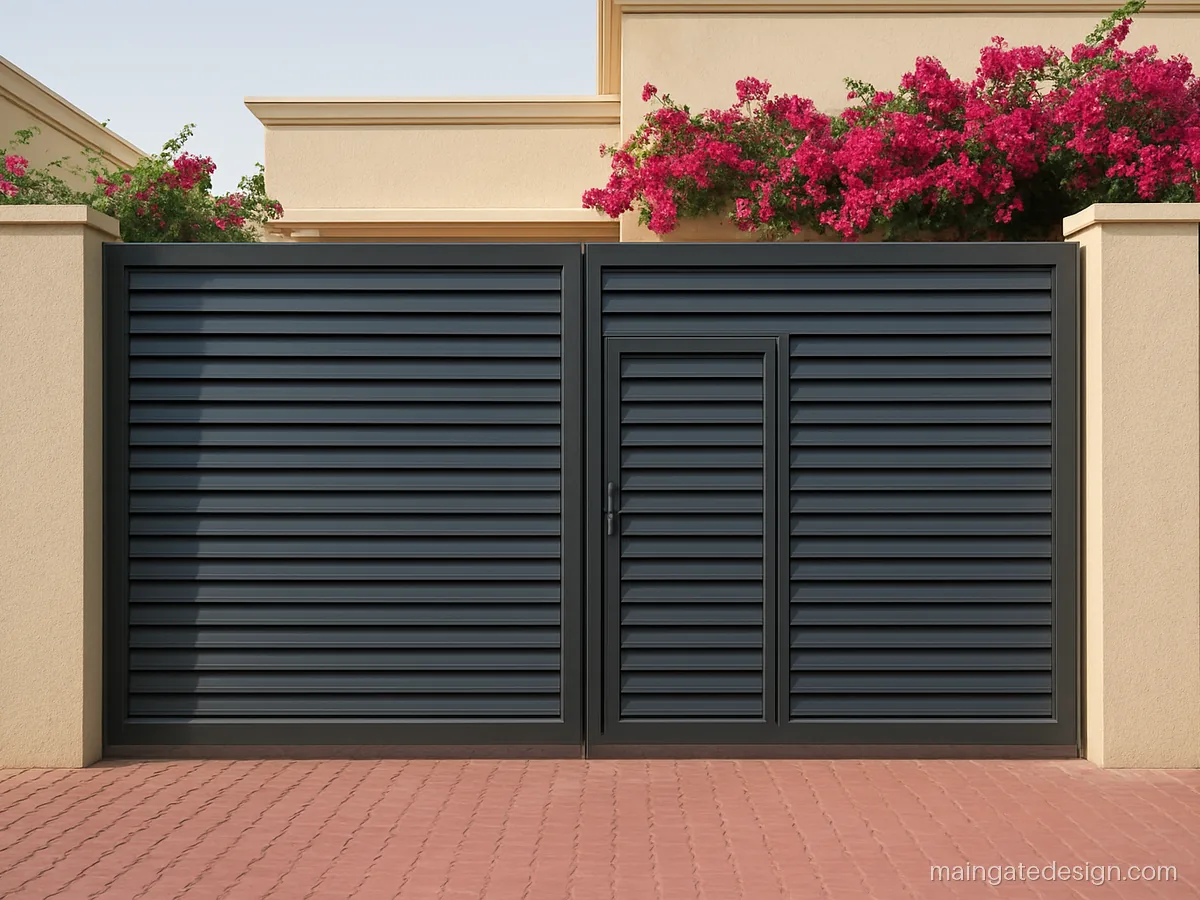

| Size | 12 x 7 ft, double+wicket |
|---|---|
| Material | MS louver sheet 16g |
| Finish | Dark grey PU |
Angled louvers block the view from the road but still let air pass, which suits hot towns. The small wicket door saves opening the big gate every time.
Fabricator tip: Louvers should tilt down outward so rain runs off. Ask for a separate frame for the wicket door.
Main Gate New Loha Door Design for Home
Many readers search for a main gate new loha door design when they want a strong iron gate that still looks fresh. These three use plain MS sections in new ways.

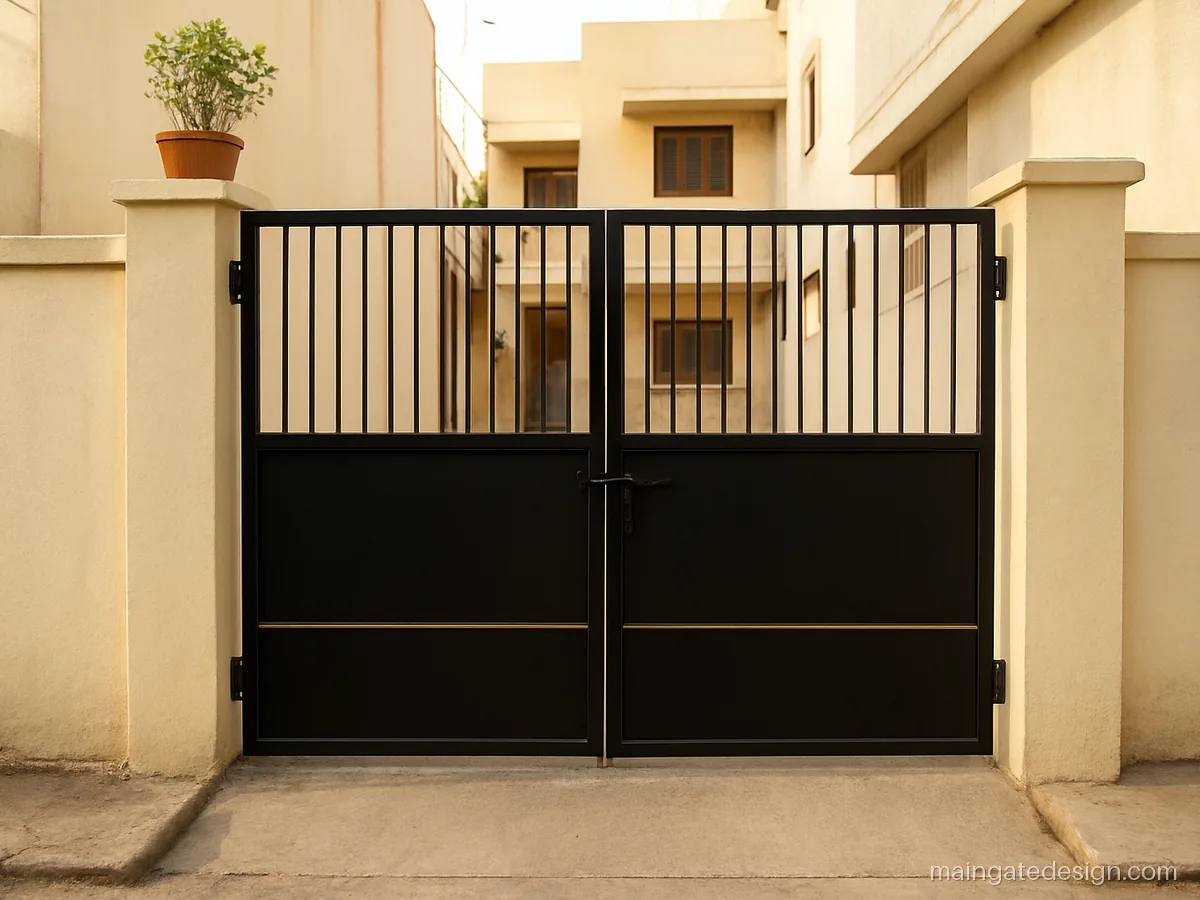

| Size | 10 x 6 ft, double |
|---|---|
| Material | MS 20x20 bars, 18g sheet |
| Finish | Matt black, brass strip |
A solid lower sheet stops dust and stray animals, while thin bars above keep the gate light. It is a safe choice for a row house on a busy lane.
Fabricator tip: Keep bar gaps under 100 mm, weld the sheet on both faces, and leave a 50 mm drain gap at the bottom.
| Size | 9 x 6 ft, double |
|---|---|
| Material | MS 25x25 tube grid |
| Finish | White PU satin |

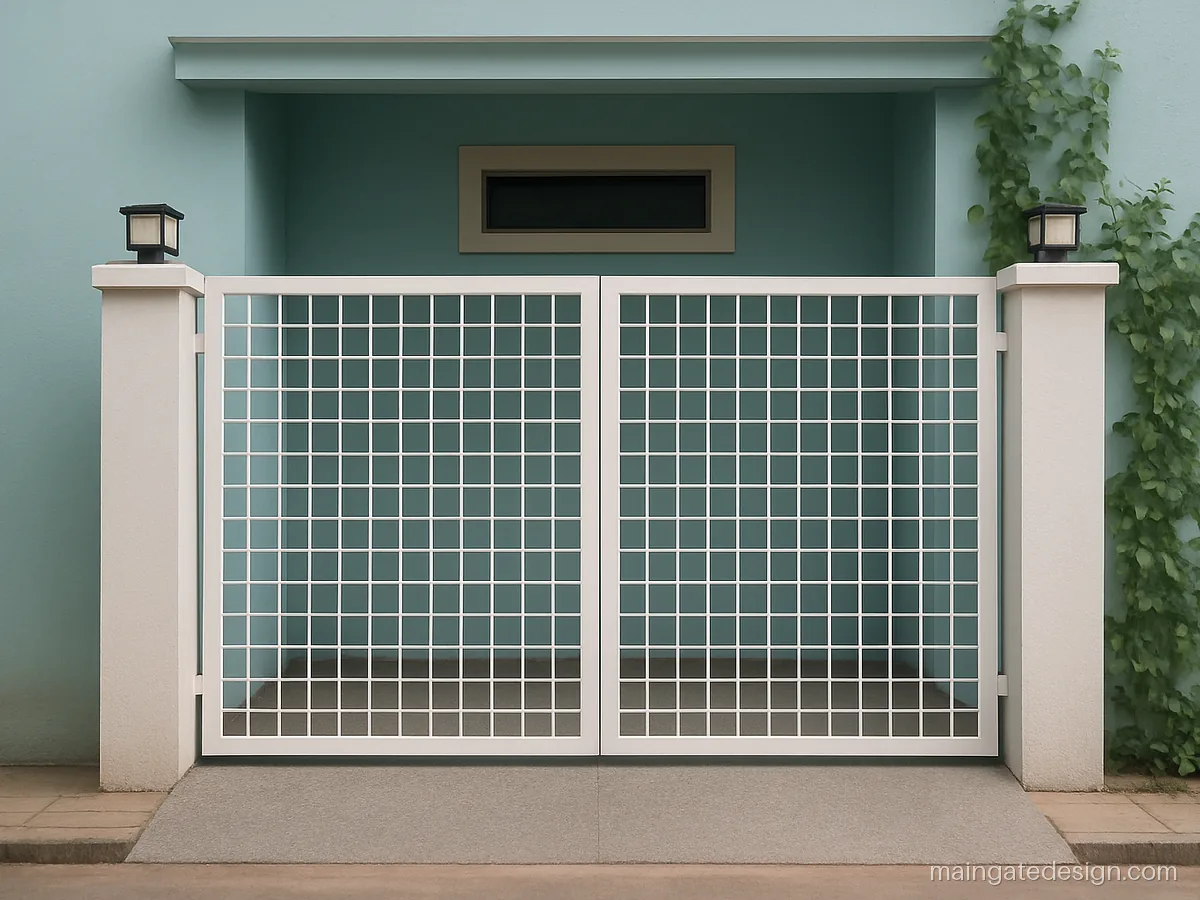

A simple square grid in white looks clean on a pastel house and shows dirt less than glossy black. Grid boxes also make the leaf stiff, so it sags less.
Fabricator tip: Ask for a 40x40 outer frame, full welds at every grid joint, and zinc primer before the white coat.
| Size | 10 x 6.5 ft, double |
|---|---|
| Material | MS flat + 25x25 tube |
| Finish | Copper metallic PU |

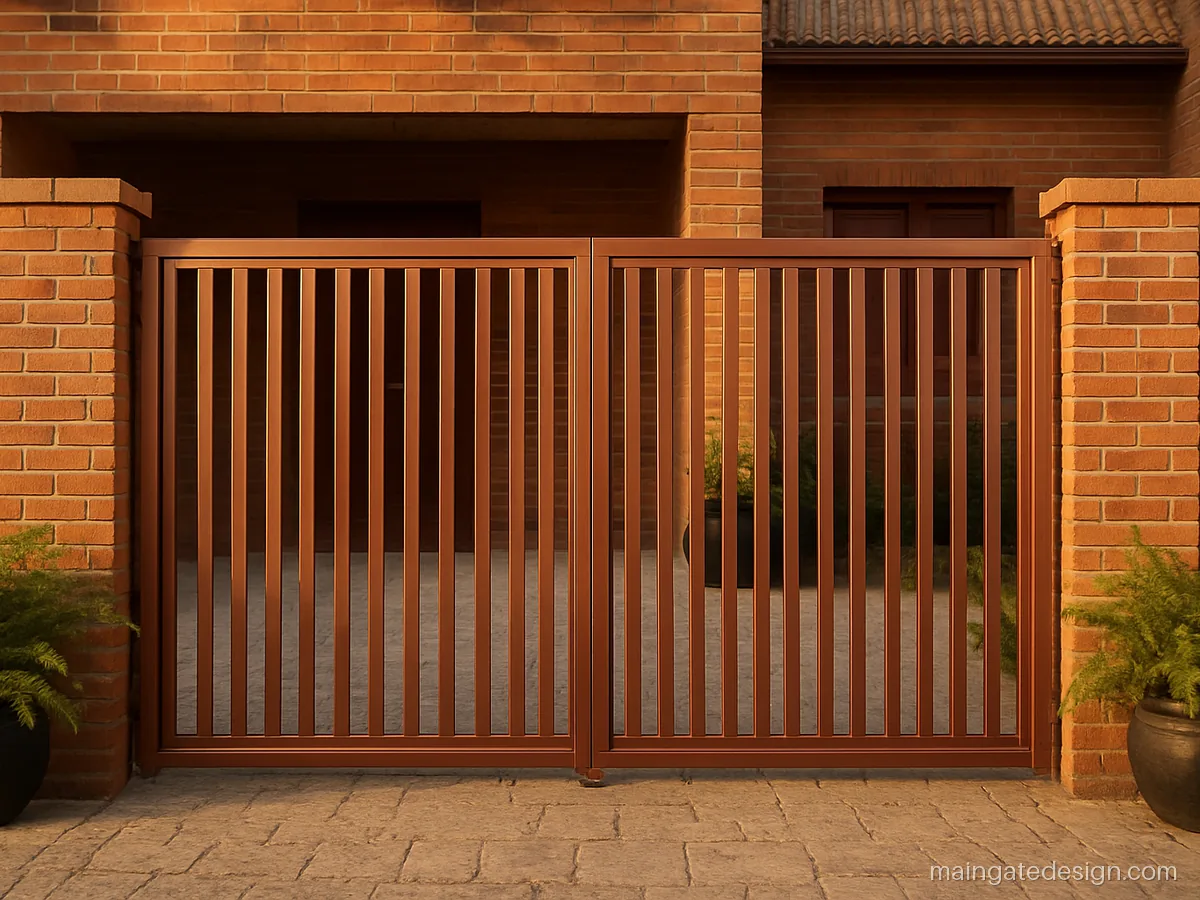

Bars of two widths placed in a random rhythm look new without any cutting work. Copper tone suits brick and stone fronts.
Fabricator tip: Mark the bar layout full size on the floor first so both leaves match when closed.
Minimal Flat and Two-Tone Modern Gates
A flat face gate is the quiet side of modern design. Two colours, or one colour with a single accent line, is often all a gate needs.

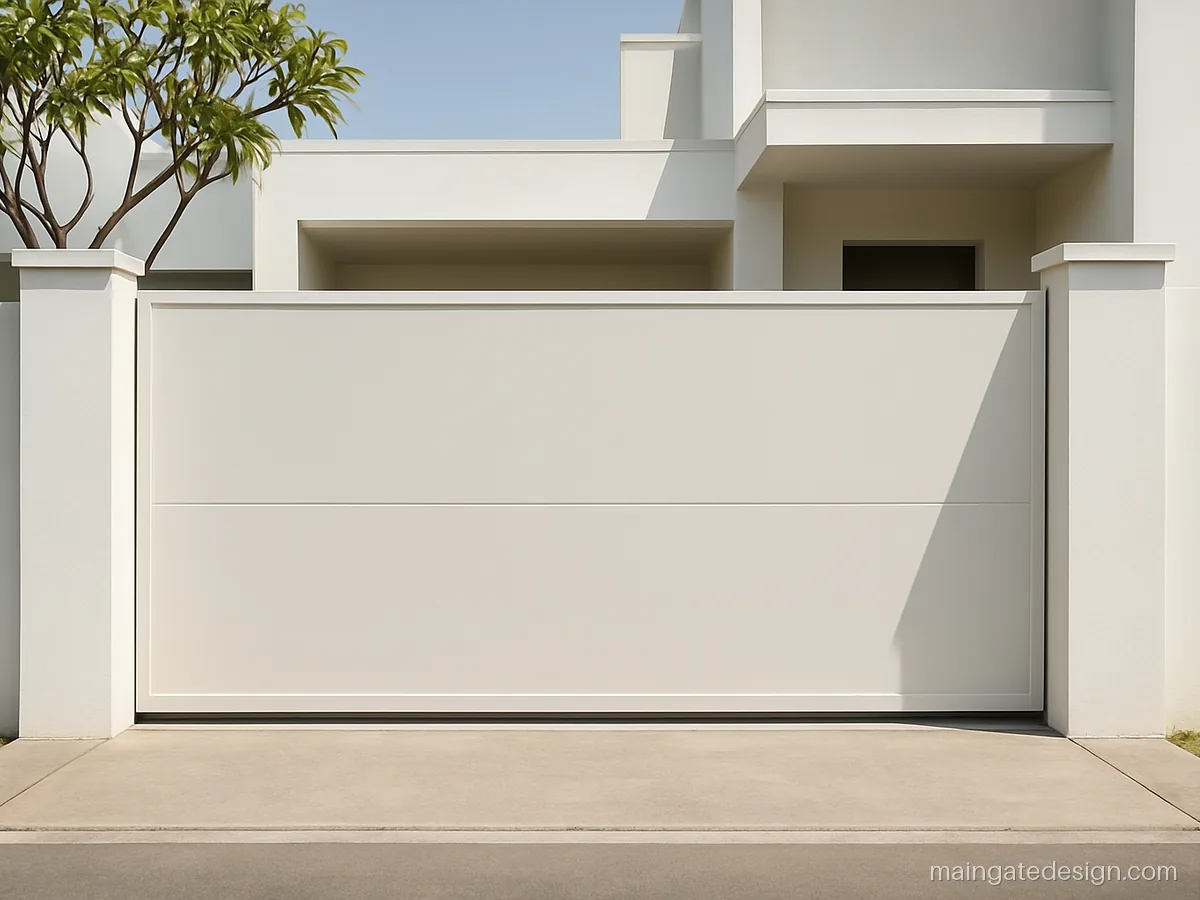

| Size | 12 x 6 ft, sliding |
|---|---|
| Material | MS frame, 16g sheet |
| Finish | Off-white PU matt |
One full flat sheet with a single groove looks expensive and gives full privacy. It suits a box-shaped modern house with white walls.
Fabricator tip: Use 16 gauge, not 18, so the sheet does not ripple. Add inner stiffeners every two feet.

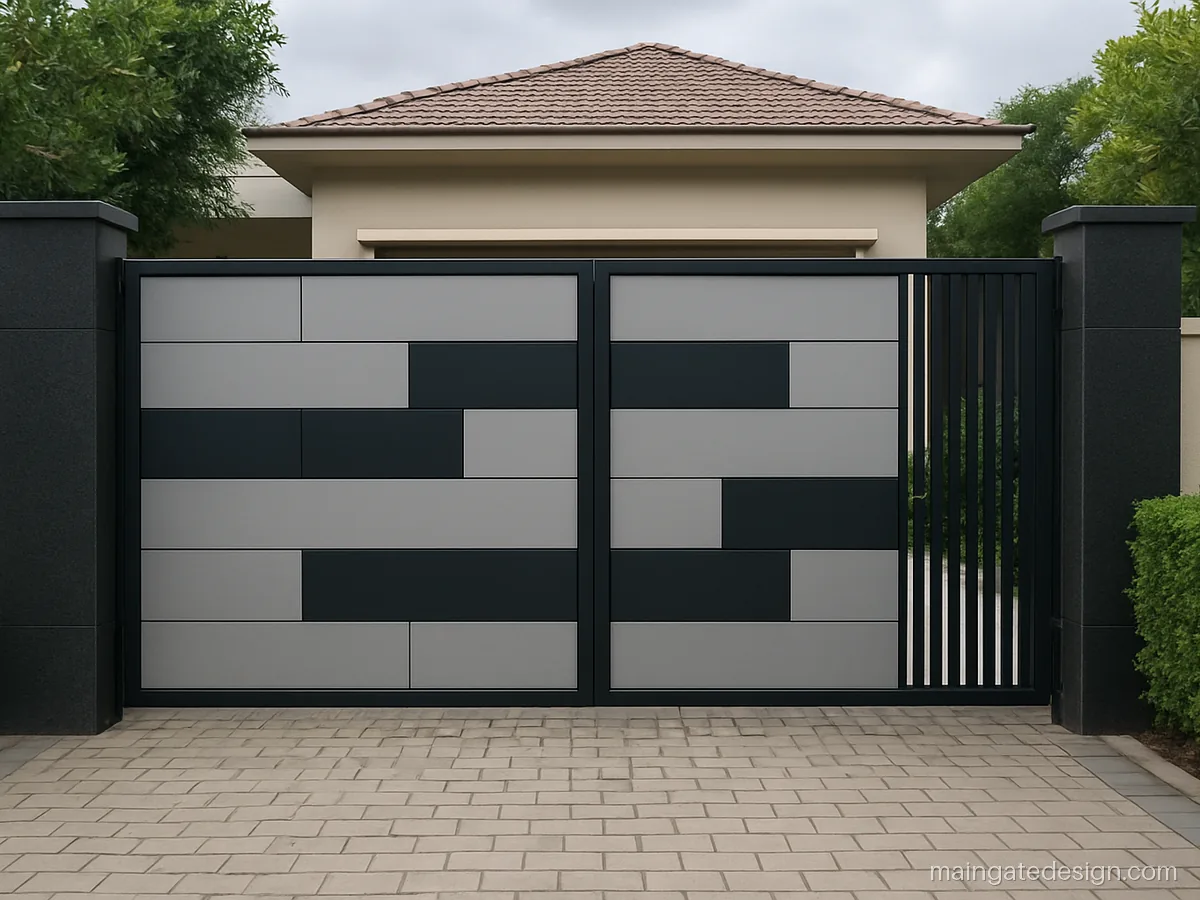

| Size | 13 x 6 ft, double |
|---|---|
| Material | MS 40x40 + 18g sheet |
| Finish | Grey and black PU |
Grey and black blocks break up a wide gate so it does not look like a wall. This pairing hides road dust well.
Fabricator tip: Mask and paint one colour at a time after primer, and ask for clear coat on top for longer life.

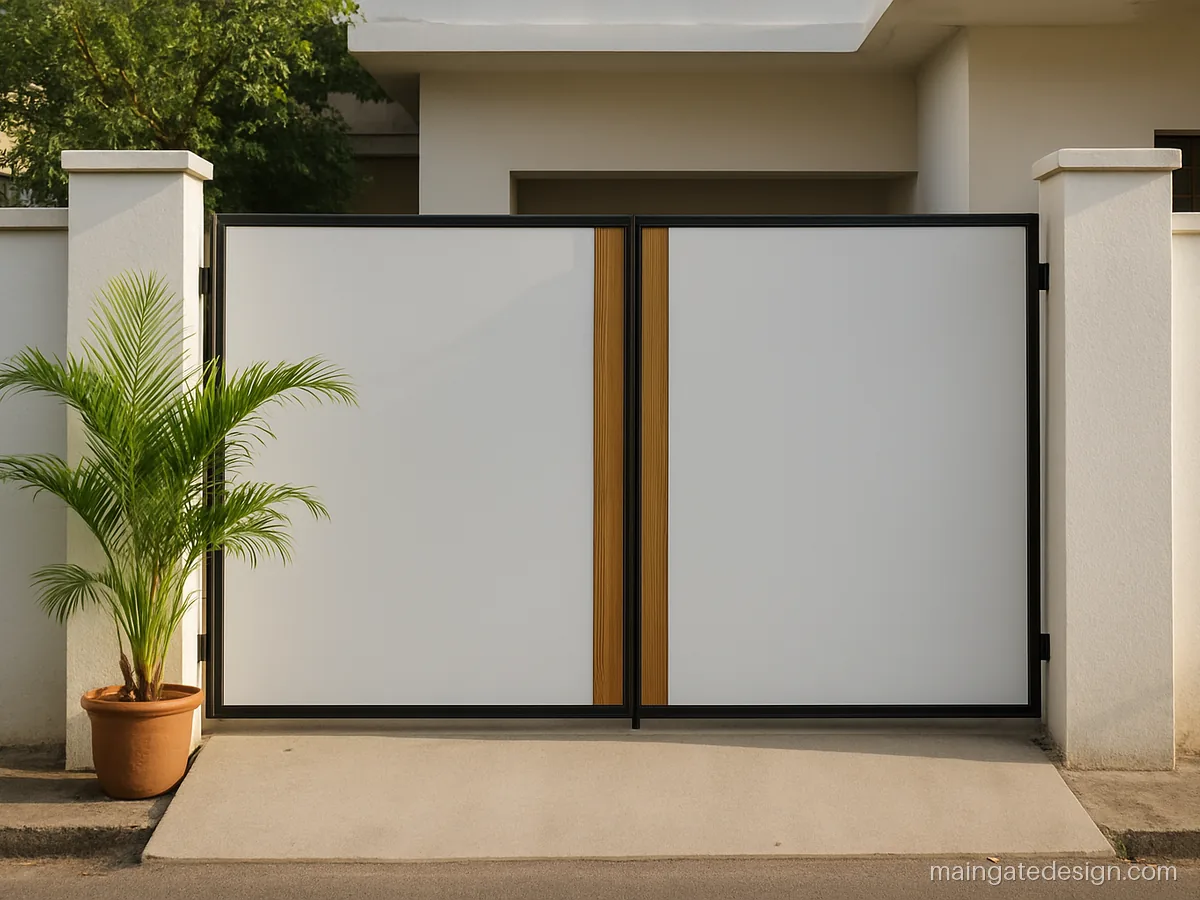

| Size | 8 x 6 ft, double |
|---|---|
| Material | MS 50x25 frame + sheet |
| Finish | White, HPL wood strip |
A single vertical wood strip near the meeting point of the two leaves adds warmth to an all-white gate. Good for a small front where colour should stay soft.
Fabricator tip: Fix the HPL strip with screws and sealant, not glue alone, and keep it off the ground by 4 inches.
Luxury Royal Main Gate Design
A luxury royal main gate design uses height, gold details and balanced curves. It works best on a large plot where the gate has space around it.
| Size | 14 x 8 ft, double |
|---|---|
| Material | MS 50x50 + bars |
| Finish | Black PU, gold tips |

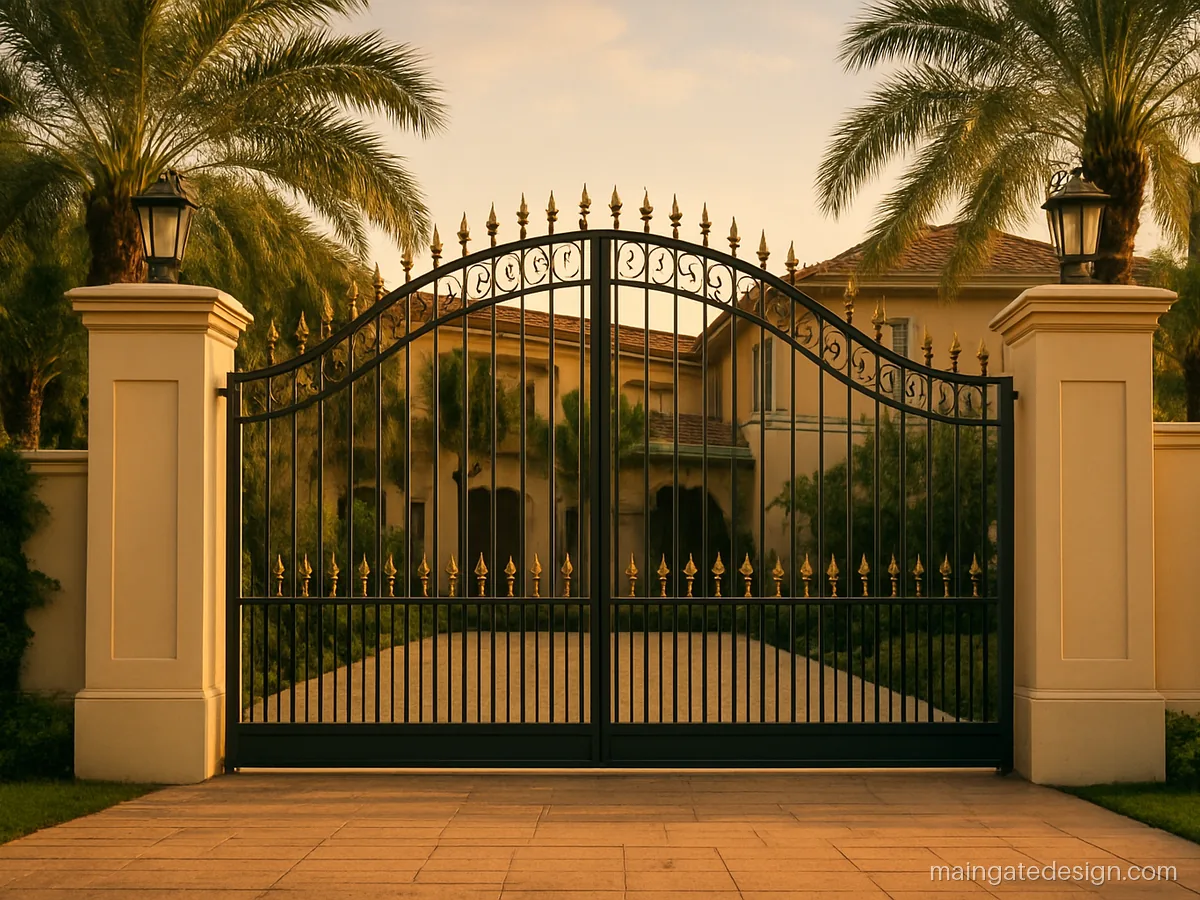

A gentle arch rising to the centre and gold finials give a grand look to a big bungalow. Keep the scroll work light so it does not look old style.
Fabricator tip: Use heavy-duty ball-bearing hinges, 4 per leaf, and a centre drop bolt into the floor.

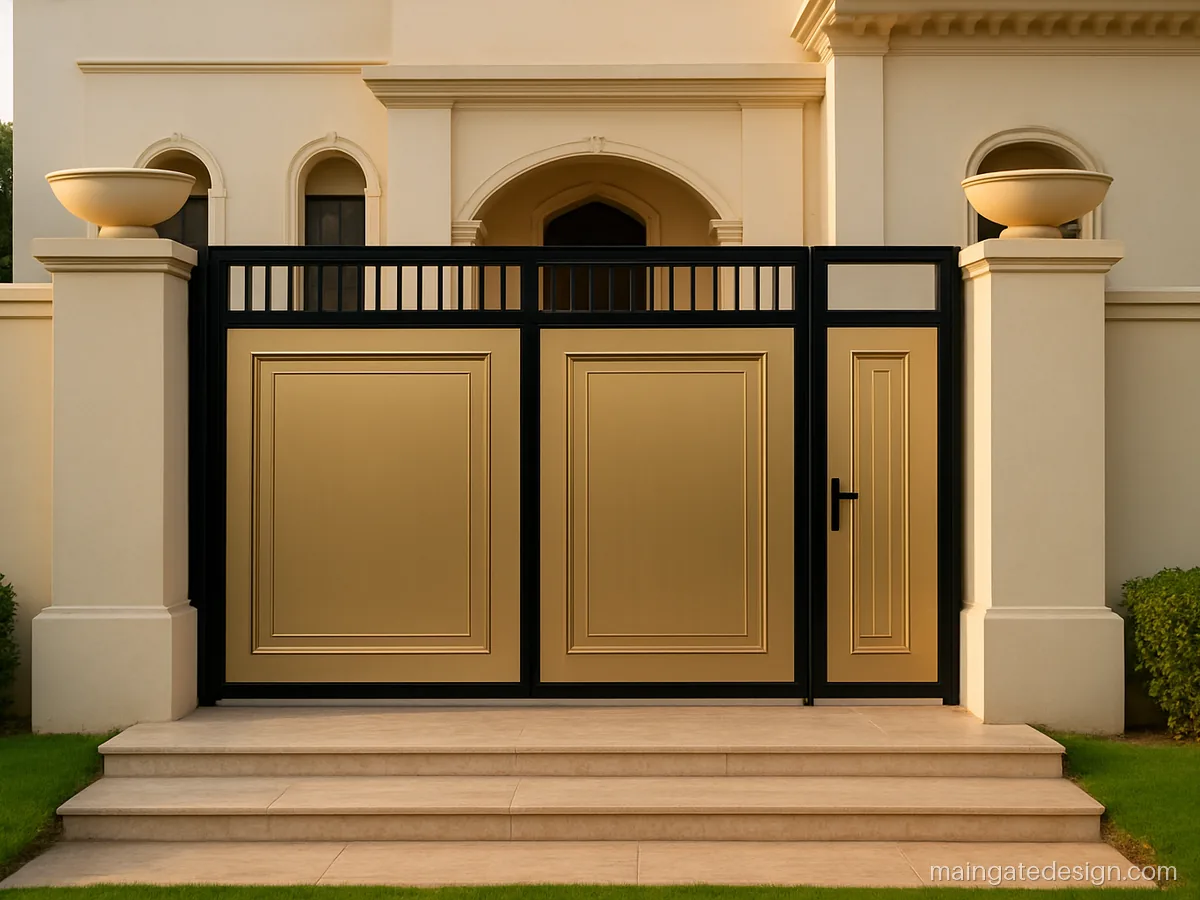

| Size | 12 x 7 ft, double |
|---|---|
| Material | MS frame, 16g sheet |
| Finish | Champagne gold, black |
Champagne gold panels with a raised border feel rich but calmer than bright gold. This style suits a white or ivory villa.
Fabricator tip: Ask for raised beading welded on, then filled and sanded smooth before the gold coat.
| Size | 16 x 8 ft, double |
|---|---|
| Material | MS 75x40 + 40x40 bars |
| Finish | Bronze PU, gold edges |

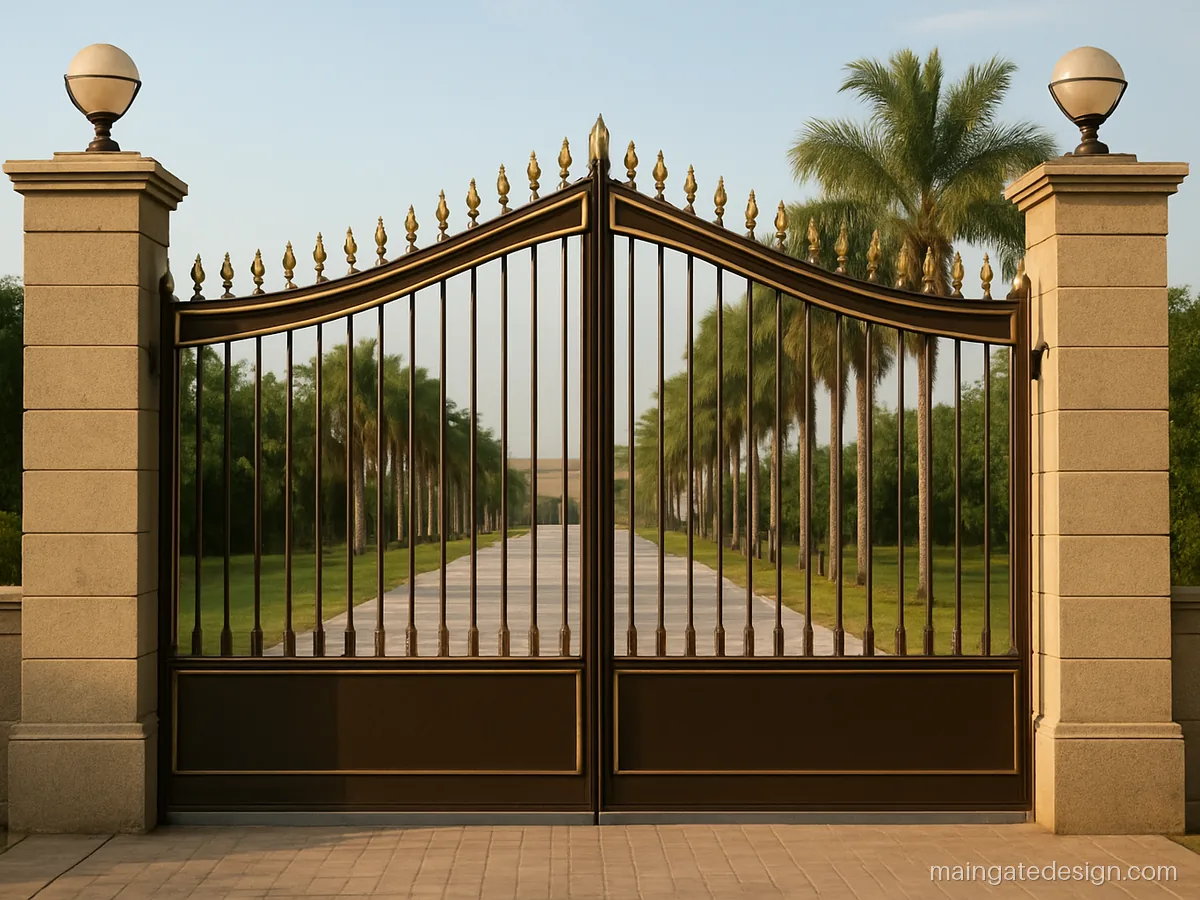

A stepped crown top rail and tall pillars make a wide gate the centre of the house front. It needs a deep pillar foundation to carry the weight.
Fabricator tip: Ask for pillar footing at least 3 ft deep with a steel plate cast in for each hinge.
Latest Main Gate Design With Lights
Lights built into the gate or pillars are a big part of the latest main gate design. Keep all wiring inside the pillar, not taped onto the gate.

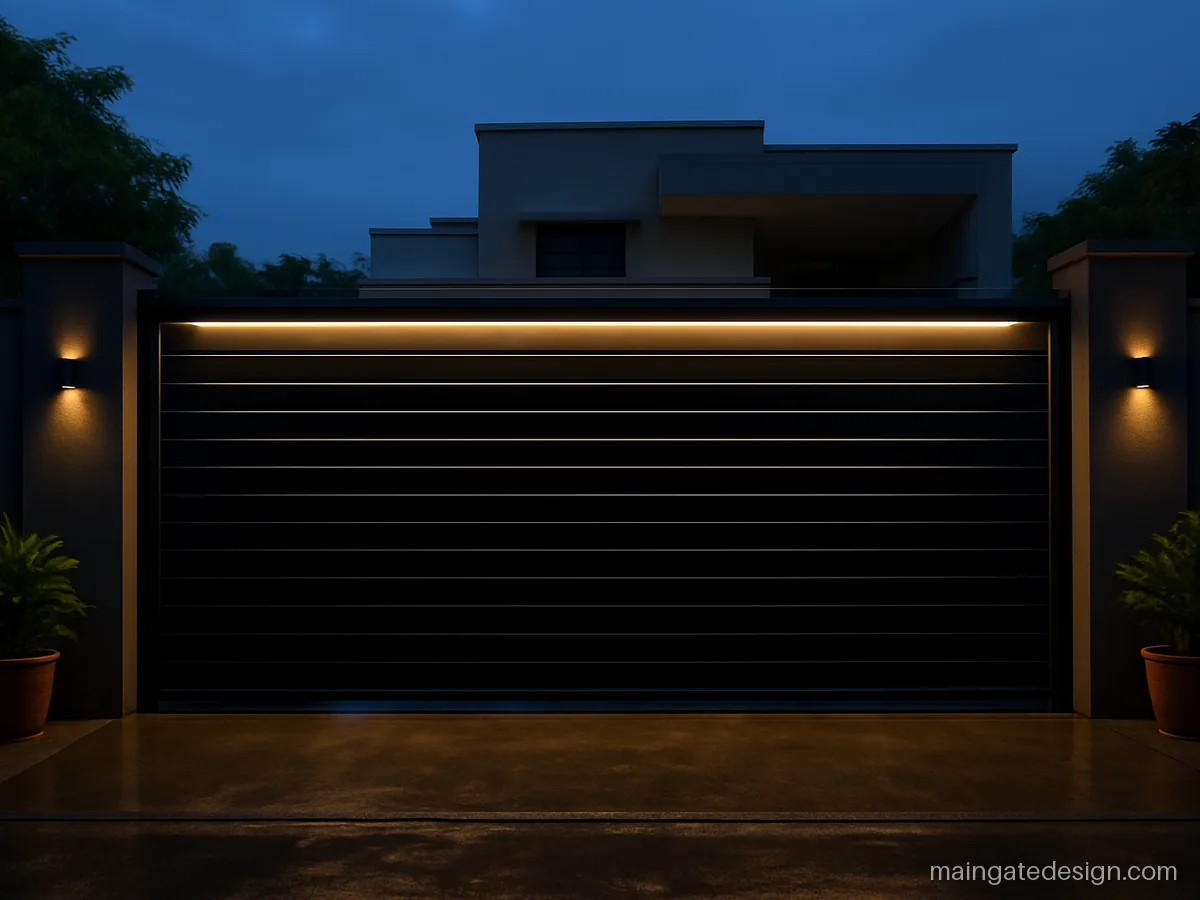

| Size | 12 x 6.5 ft, sliding |
|---|---|
| Material | MS 40x20 slats |
| Finish | Matt black PU |
A warm LED strip behind the top rail washes light down the slats at night. It helps visitors find the gate and looks calm, not flashy.
Fabricator tip: Use an outdoor rated strip in an aluminium channel, with the cable running through the pillar in a conduit.
| Size | 10 x 6 ft, double |
|---|---|
| Material | MS 25x25 bars + sheet |
| Finish | Black PU, gold lines |

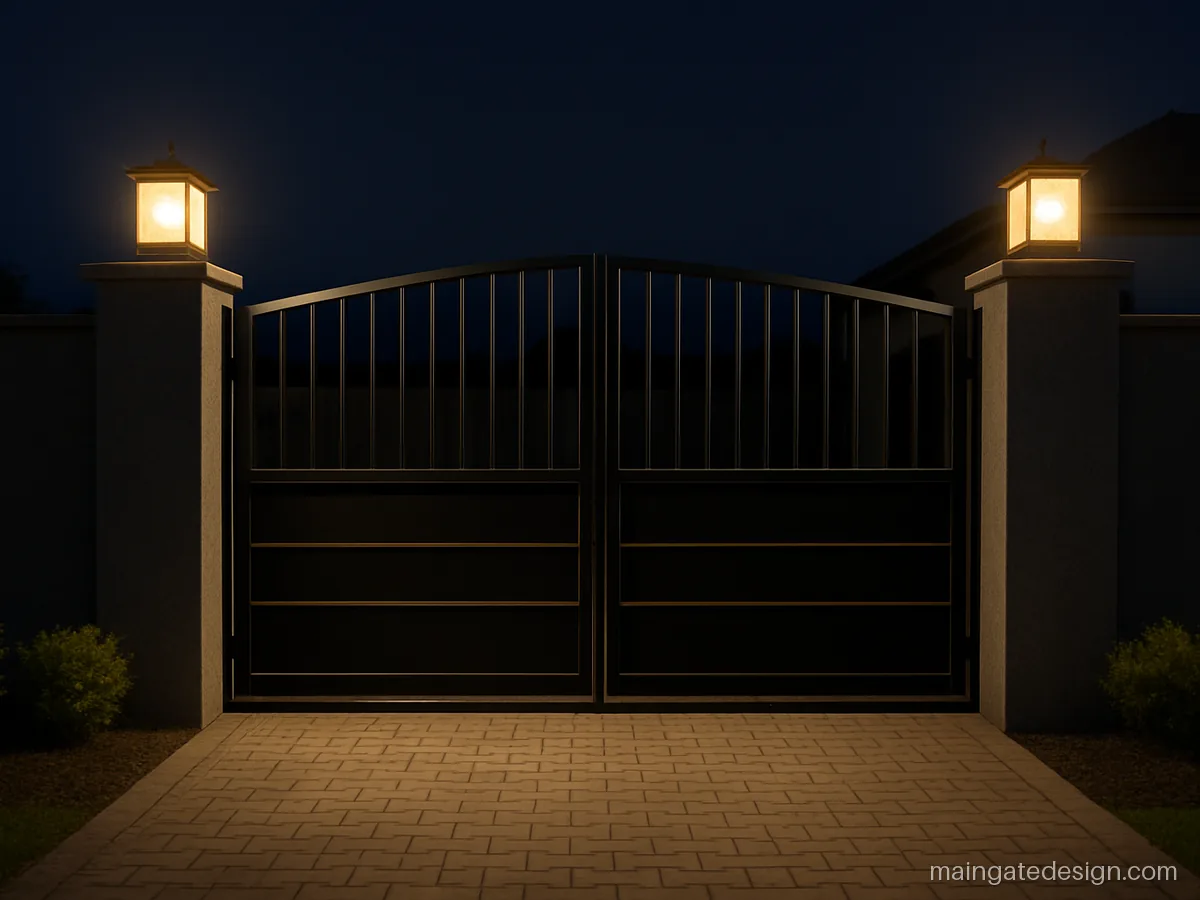

Glass cube lamps on each pillar frame the gate without any wires on the leaves. Black and gold stays in fashion longer than bright colours.
Fabricator tip: Leave a 25 mm conduit in each pillar before plaster so the lamp wiring stays hidden.

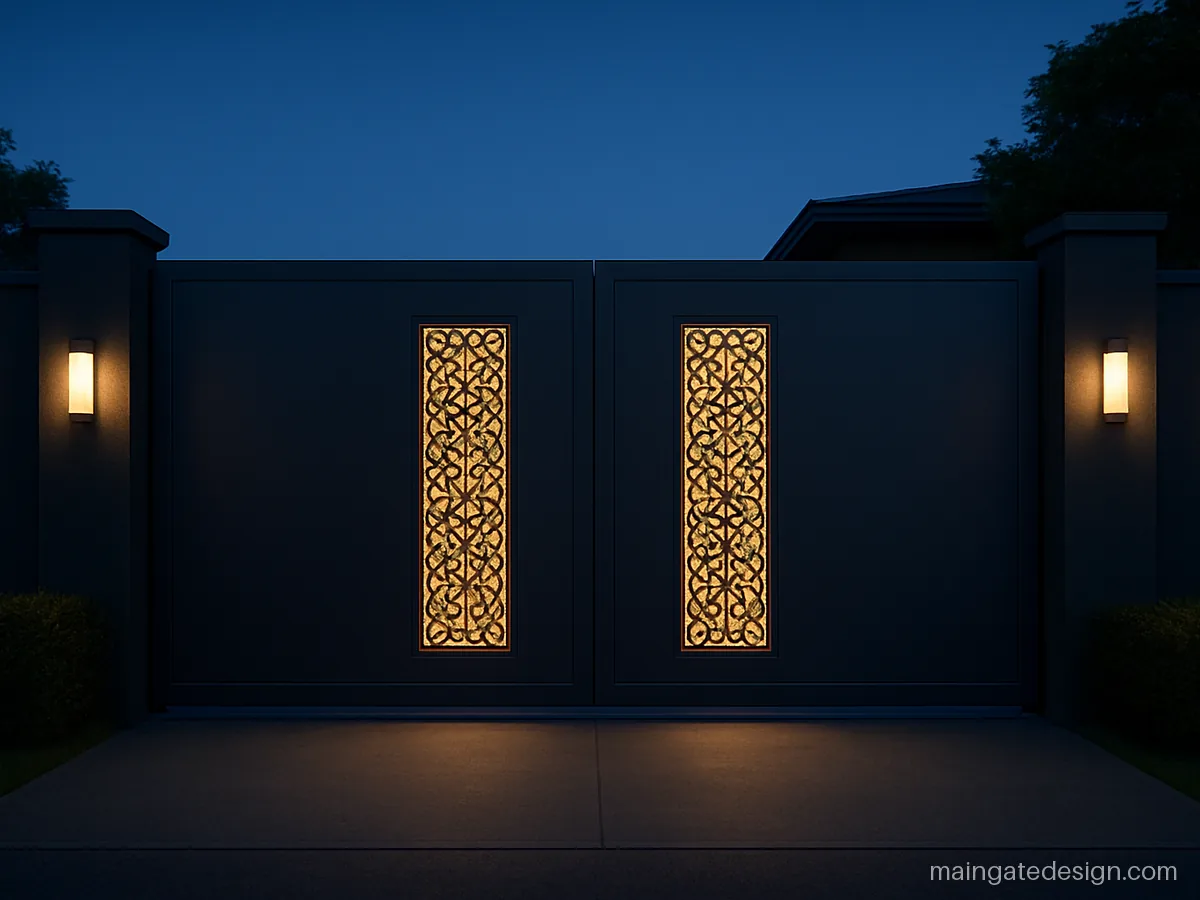

| Size | 11 x 6.5 ft, double |
|---|---|
| Material | MS frame + CNC panel |
| Finish | Graphite PU, warm LED |
A small backlit jali panel at the centre gives a soft glow pattern at night.
Fabricator tip: Mount the LED behind a frosted acrylic sheet so dots of light do not show, and seal the box from rain.
How to Pick a Modern Main Gate Design for Home
Start with the house, not the gate. A box-shaped house with flat roofs looks right with slats or flat panels. A house with arches and mouldings needs a softer gate, maybe with a gentle arched top.
- Width: 8 to 10 ft for a bike and small car, 10 to 12 ft for an SUV that must turn in. Measure clear width between pillars.
- Height: 6 ft is normal. Go to 7 or 8 ft only if the pillars and wall are tall enough.
- Privacy: slats with a 15 to 20 mm gap, or a flat sheet, if the porch faces a busy road.
- Opening: double leaf gates should open inward. If the drive is short or sloped, choose a sliding gate. See sliding and folding gates.
For colour ideas that suit modern gates, read our main gate colour design page.
Sections and Finish Table for a Modern MS Main Gate
| Part | Usual section | Why |
|---|---|---|
| Outer frame | MS 50x50 or 75x40 box | Stops sag on wide leaves |
| Slats | MS 40x20 or 50x25 tube | Straight, light, easy to paint |
| Flat panel | 16 gauge sheet | 18 gauge can ripple in sun |
| Hinges | Ball-bearing, 3 to 4 per leaf | Smooth swing for years |
| Finish | Zinc primer + PU paint | Lasts longer than enamel |
Cost is worked out from weight. The fabricator weighs or estimates the MS used and multiplies it by his rate per kg, then adds paint, hinges, wheels or track, lock, fitting and transport. Ask for these items to be listed separately so you can compare quotes. Our main gate price guide explains this step by step.
Rust and Paint Care
Modern gates often use matt dark colours, which show rust spots quickly. Ask for every joint to be ground smooth, cleaned and given zinc primer before paint. Hollow tubes must be sealed at the ends or water collects inside. Near the sea, add a second primer coat and repaint every two to three years.
Main gate questions
What is the latest main gate design for home right now?
Horizontal slats, flat panels with one accent line and gates with hidden LED lights are the most asked for. Two-tone colours like grey with black or white with wood are also common. All of these are simple to build in MS.
Is a modern iron main gate design strong enough for security?
Yes, if the frame is at least 40x40 mm box and the bar or slat gaps are under 100 mm. Add a good lock and a drop bolt into the floor. A flat sheet gate also stops anyone from reaching the latch from outside.
Which main gate new design is easiest to maintain?
A flat sheet or wide slat gate in a satin PU finish is easiest to wipe clean. Avoid deep scroll work that traps dust and water.
Can I get a main gate design modern look on an old house?
Yes. Keep the old pillars, plaster them plain and fit a slat or panel gate. A fresh pillar colour and two cube lamps change the front a lot for little extra work.
Which main gate design latest styles suit a small plot?
On a narrow front, use a sliding gate or a double gate with a wicket door so you do not swing big leaves every time. Light colours and horizontal lines make a small front look wider.
How do I get the best main gate design for my budget?
Choose the look first, then ask two or three fabricators for a quote with weight, sections and fittings listed. A clean slat or bar design costs less than heavy CNC work and still looks modern.
