A wooden main gate design gives a house a warm, welcoming front that steel alone cannot match. The catch is weather: sun cracks wood, rain swells it and termites eat the bottom rail. So most good wooden gates today are a steel frame dressed in wood, HPL or WPC.
Below are 12 original designs, from solid teak haveli gates to low upkeep laminate gates. Each one has a size, material and a note for your fabricator or carpenter. Main gate lakdi ka design work needs both trades, so show the note to both.
If you want metal with a wood touch, compare these with our iron main gate and steel main gate pages.
Solid Wood Main Gate Design
A solid wooden gate design for main gate openings is the traditional choice for haveli style homes and farm houses. It is heavy, so it needs strong pillars and a steel frame hidden inside or behind.

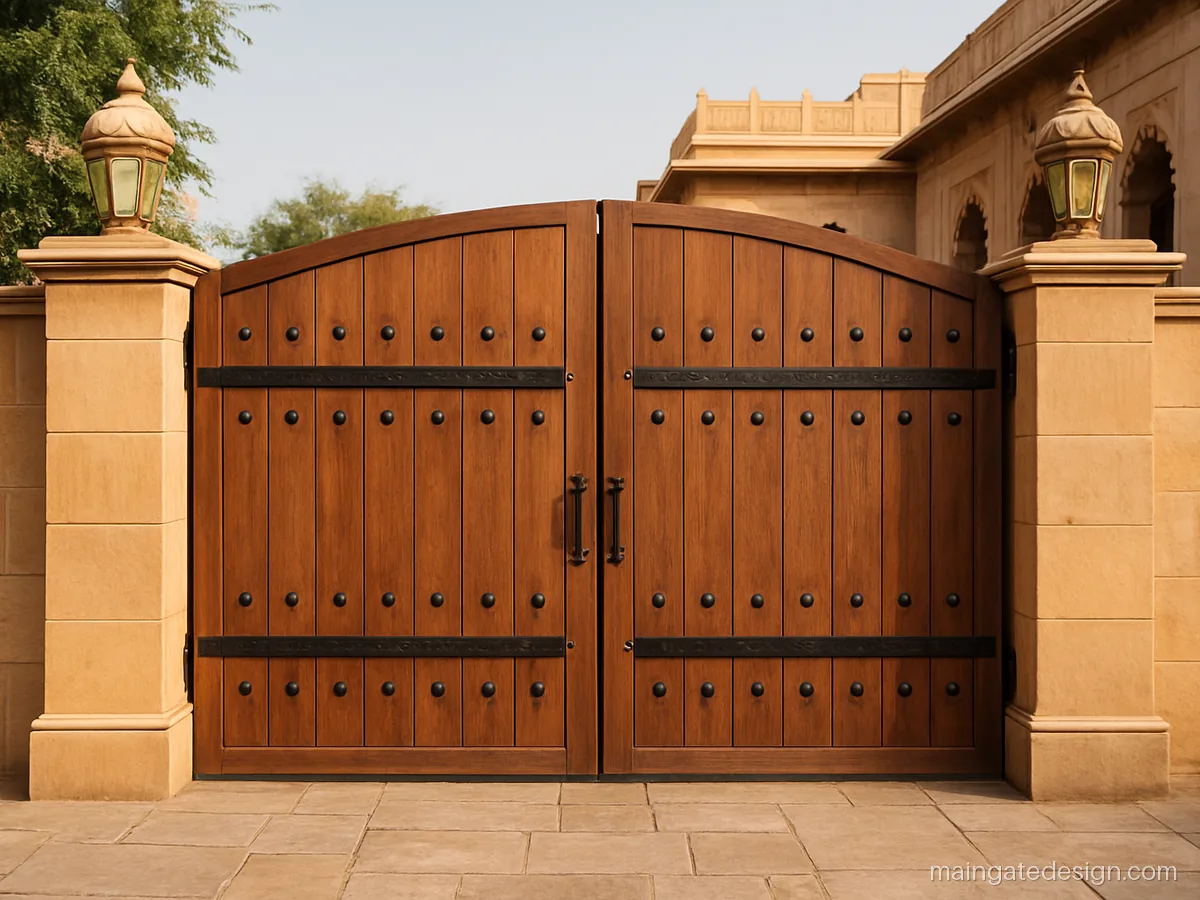

| Size | 10 x 8 ft, double |
|---|---|
| Material | Teak planks on MS frame |
| Finish | Natural teak oil |
Vertical planks with a row of iron studs give the old haveli look. It needs a deep porch so the leaves can swing fully open.
Fabricator tip: Bolt planks to a hidden MS 50x50 frame and use four heavy hinges per leaf, not three.

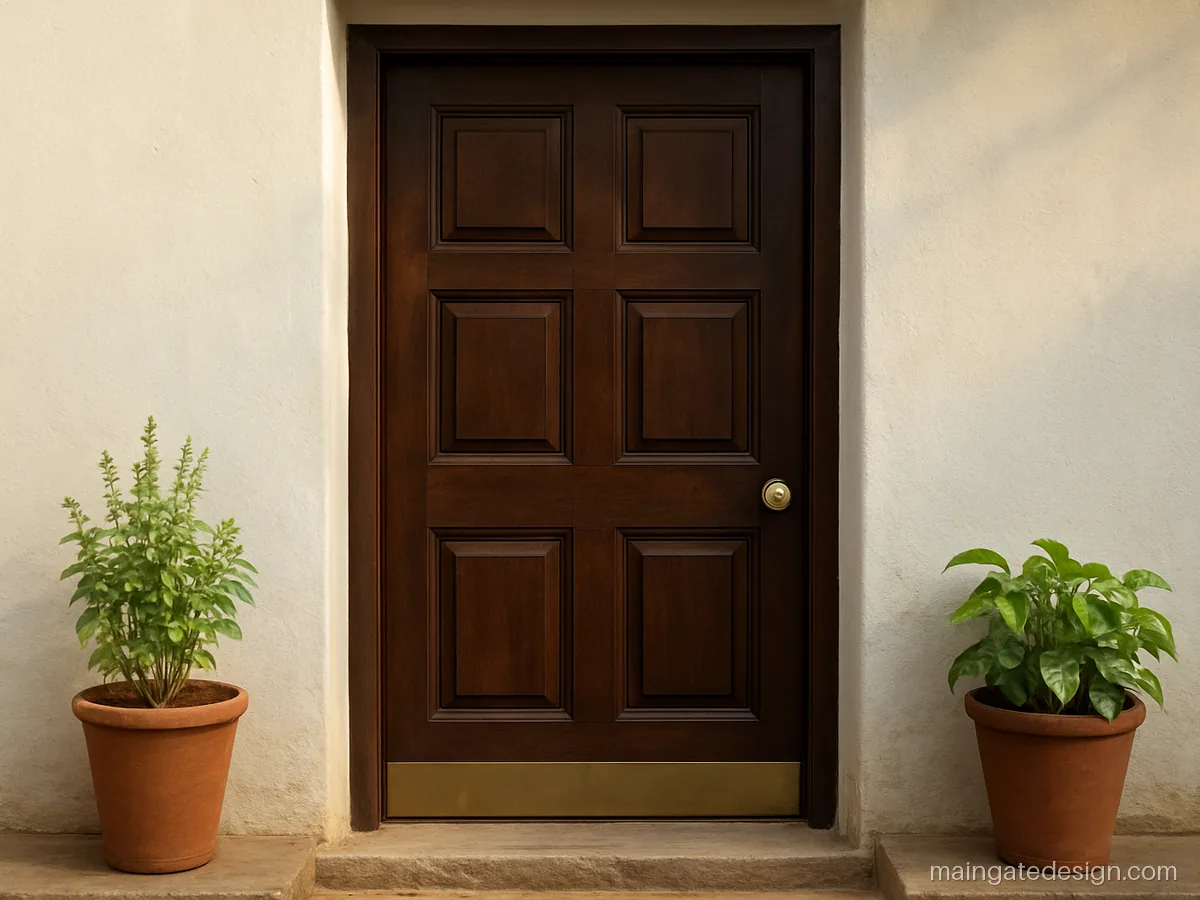

| Size | 4 x 7 ft, single |
|---|---|
| Material | Sal wood, raised panels |
| Finish | Walnut stain, PU |
A single wooden leaf works where the gate is only for walking in, such as a side entry or a small courtyard. Simple raised panels age better than deep carving.
Fabricator tip: Seal the top and bottom end grain with two coats before fitting, and keep 15 mm above the floor.

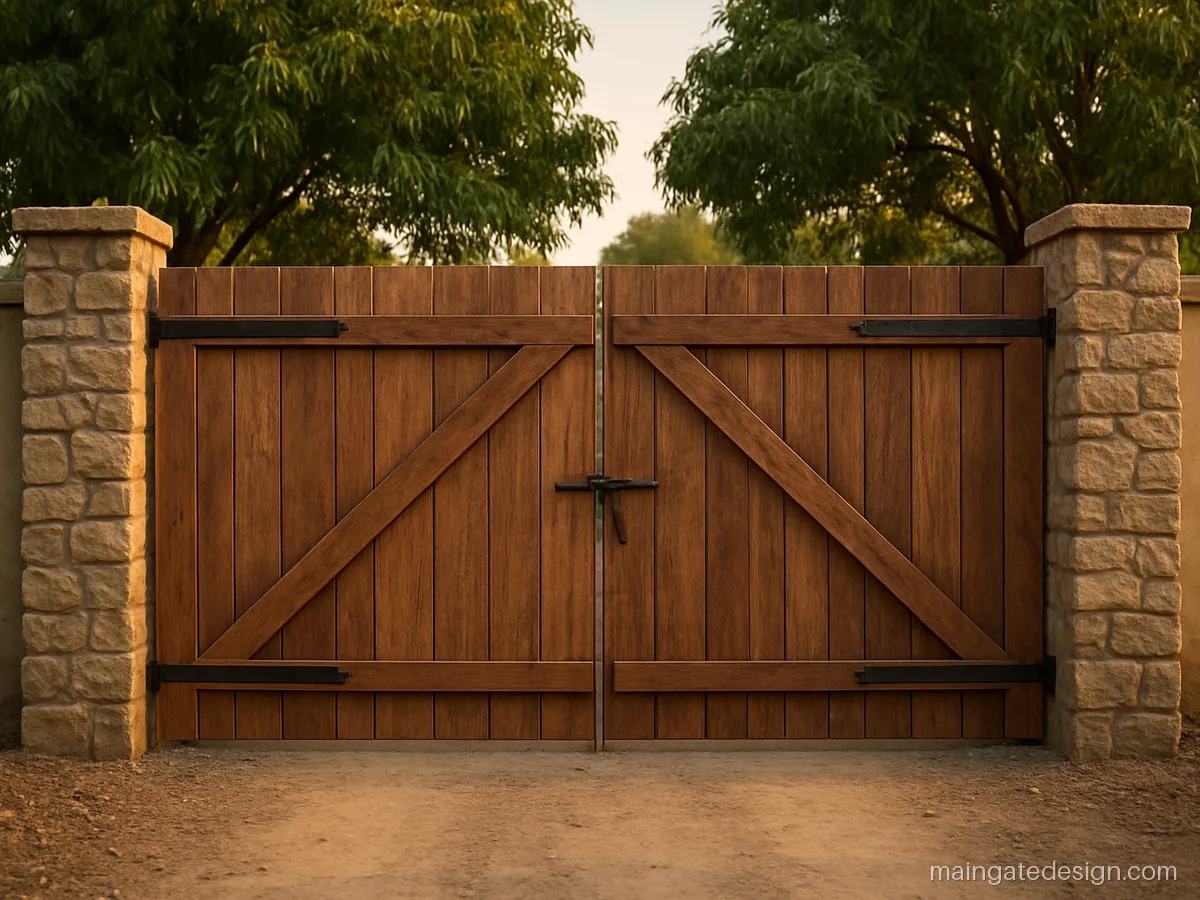

| Size | 12 x 6 ft, double |
|---|---|
| Material | Rough sawn hardwood |
| Finish | Clear exterior oil |
Rough sawn boards and long strap hinges suit a farm house with a mud or stone wall. The Z brace on each leaf stops the gate from sagging.
Fabricator tip: Add a Z brace on each leaf with the diagonal going up from the bottom hinge side.
Main Gate Wooden Design on an MS Frame
Most new homes now use an MS frame with wooden slats fixed on it. You get the warm look of wood with the strength of steel, and a bad slat can be changed without rebuilding the gate. This is the best main gate wooden design for home use in cities.

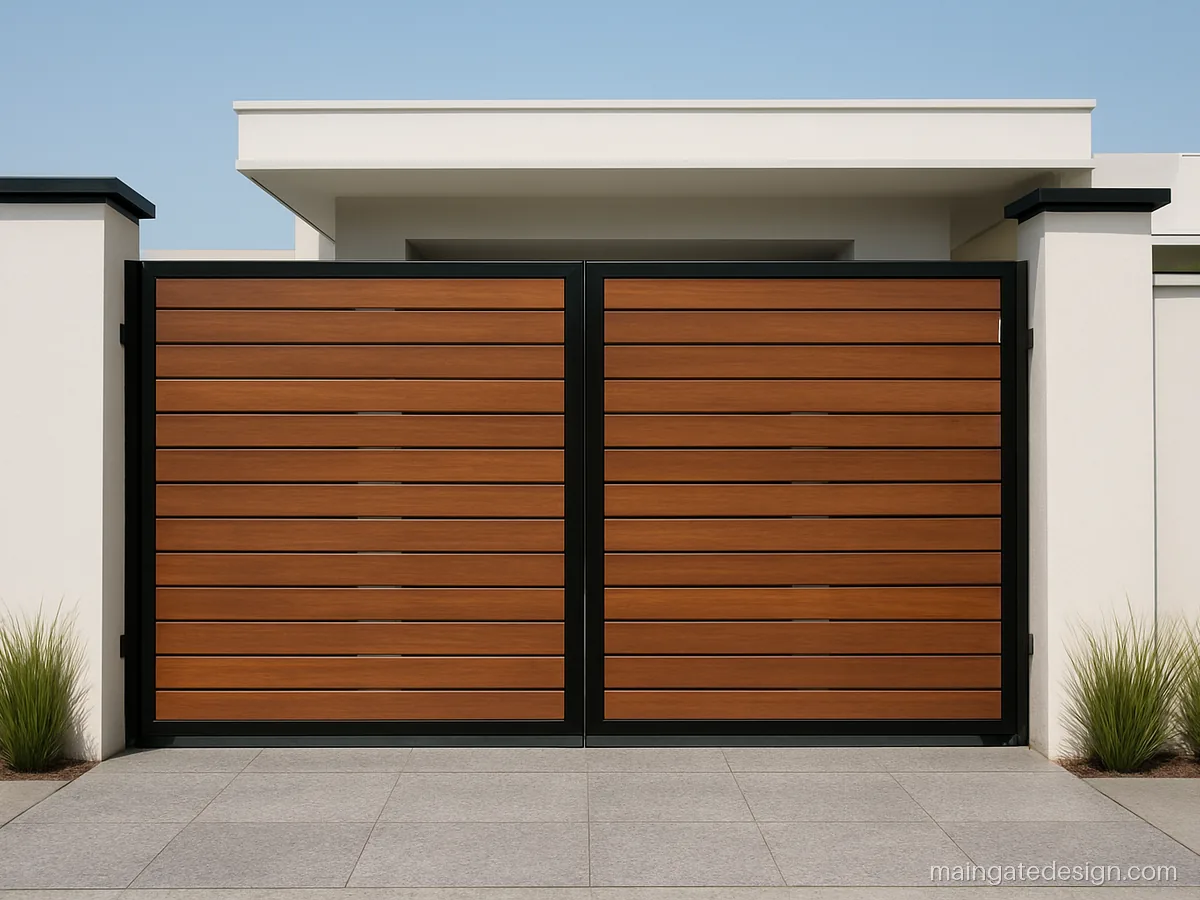

| Size | 12 x 6 ft, double |
|---|---|
| Material | MS 50x25 + teak slats |
| Finish | Black PU, teak oil |
Thin black frame lines and wide teak slats give a clean modern front. Gaps between slats let air through and keep wind load low.
Fabricator tip: Screw slats from the back with SS screws, leave 8 mm gaps, and prime the frame before fixing wood.

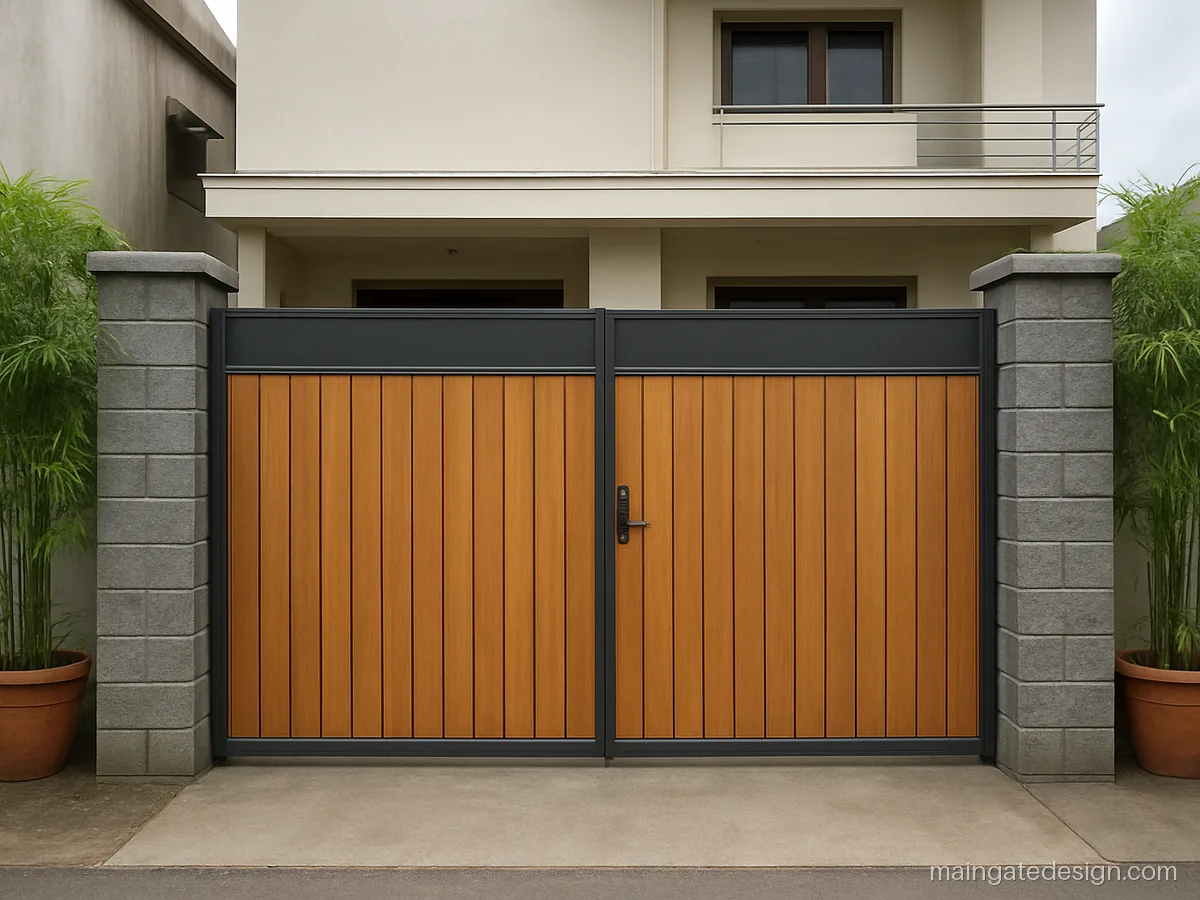

| Size | 9 x 7 ft, double |
|---|---|
| Material | MS 40x40, 18G sheet |
| Finish | Grey PU, honey wood |
Vertical slats look taller and suit a narrow plot. The steel sheet band on top protects the wood from direct rain.
Fabricator tip: Bend the top sheet into a small drip edge so rain runs off the front, not down the slats.

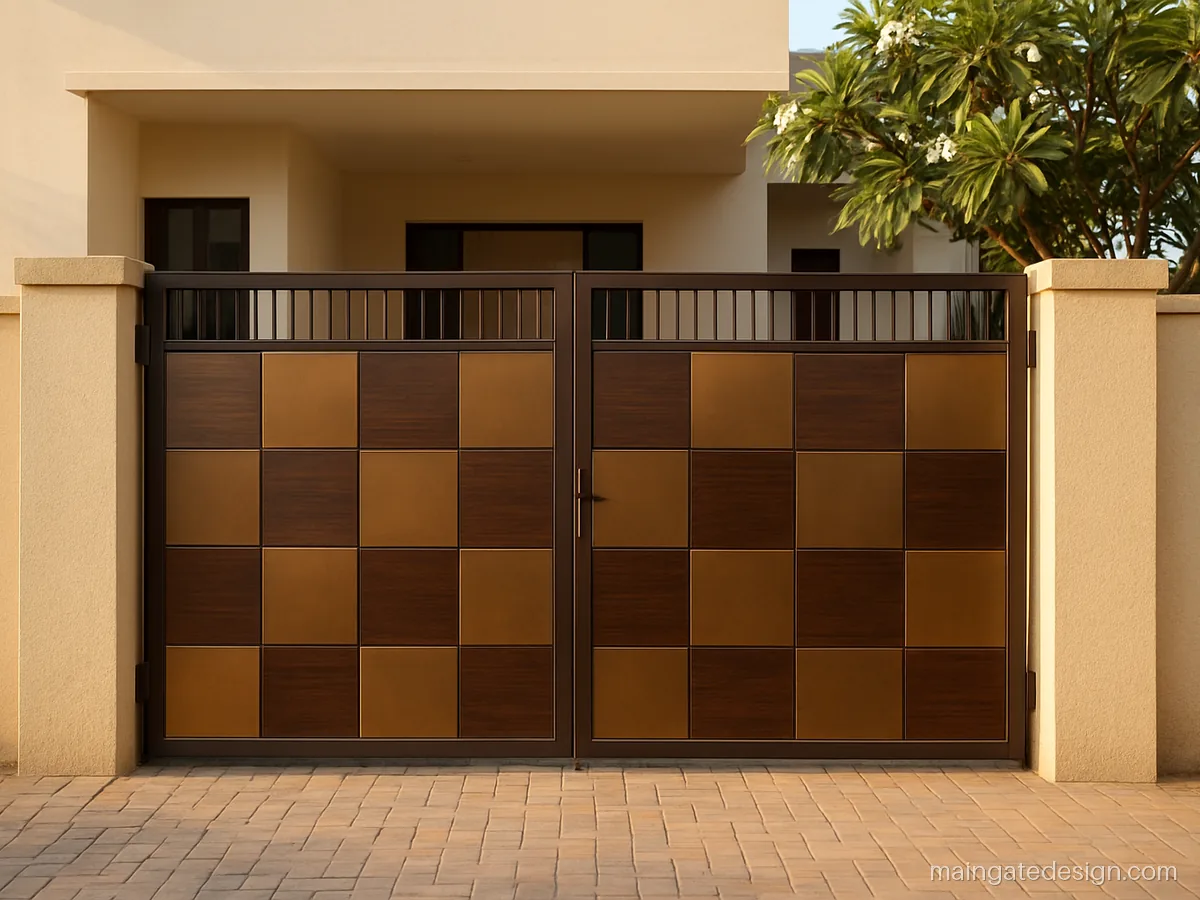

| Size | 11 x 6.5 ft, double |
|---|---|
| Material | MS 40x40, wood panels |
| Finish | Bronze PU, walnut |
Alternating steel and wood blocks make a pattern that is easy to repeat in the window grills. It hides dust well in a dry city.
Fabricator tip: Keep each wood panel inside its own steel box so water drains out of the bottom corner.
Main Gate HPL Sheet Gate Design and WPC Gates
HPL (high pressure laminate) sheets and WPC (wood plastic composite) planks look like wood but do not rot or need polish. A main gate WPC gate design is a good fit near the sea or in heavy rain areas.

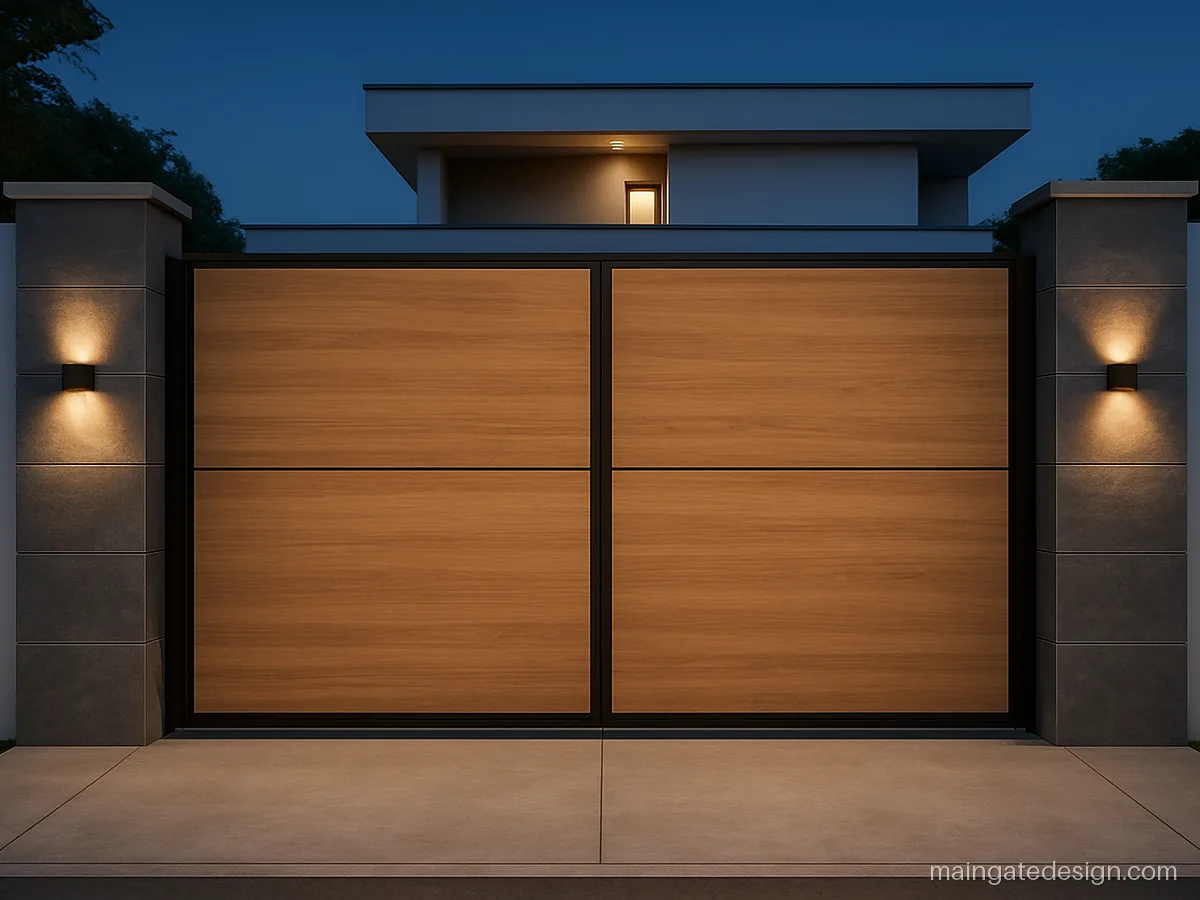

| Size | 12 x 7 ft, double |
|---|---|
| Material | MS 40x40 + 8 mm HPL |
| Finish | Light oak HPL |
Exterior HPL sheet gives a smooth wood grain that does not crack in the sun. Hidden fixings keep the face clean.
Fabricator tip: Ask for exterior grade HPL at least 6 to 8 mm thick, fixed with hidden clips over a primed MS frame.

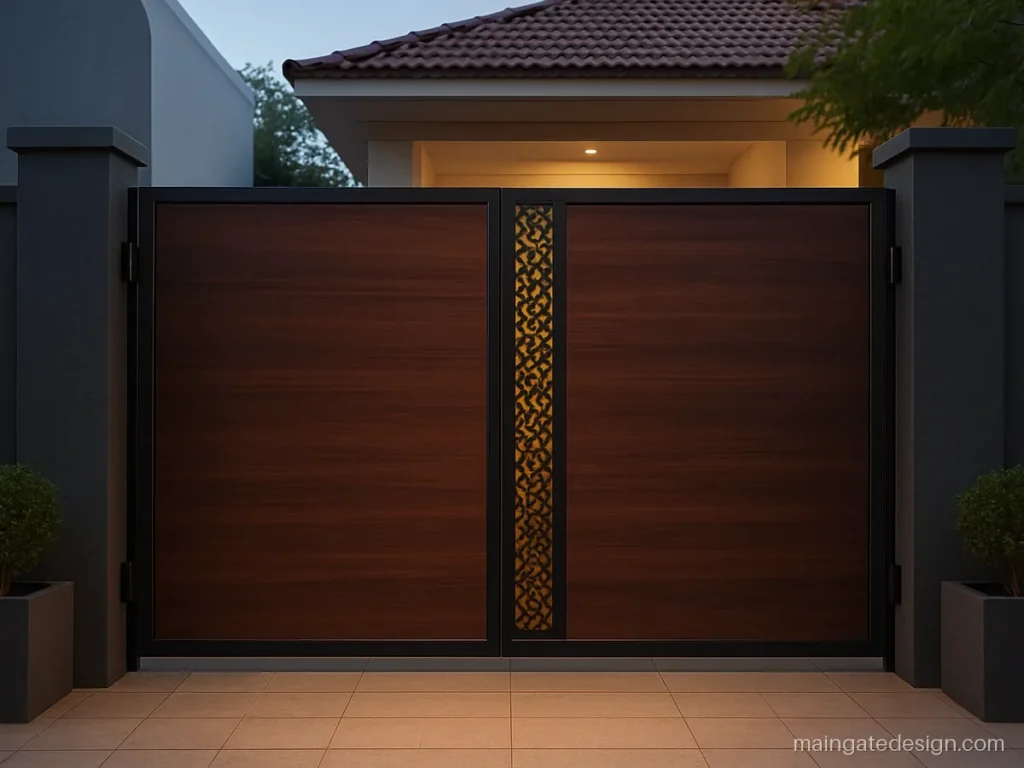

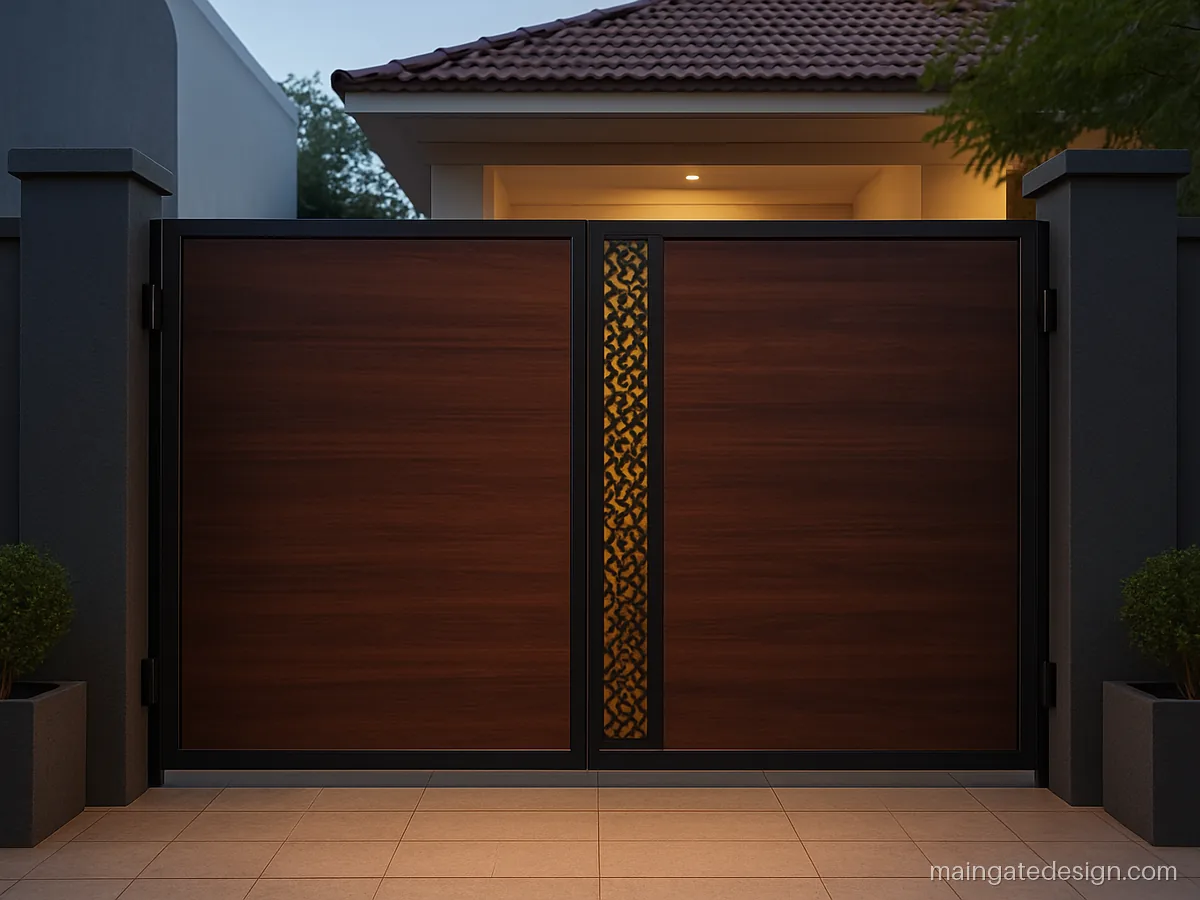

| Size | 10 x 7 ft, double |
|---|---|
| Material | MS frame, HPL, CNC strip |
| Finish | Walnut HPL, black |
A narrow laser cut steel strip lights up the dark laminate at night. HPL can be wiped clean with a damp cloth.
Fabricator tip: Keep the CNC strip in a separate frame so it can be painted without removing the HPL.

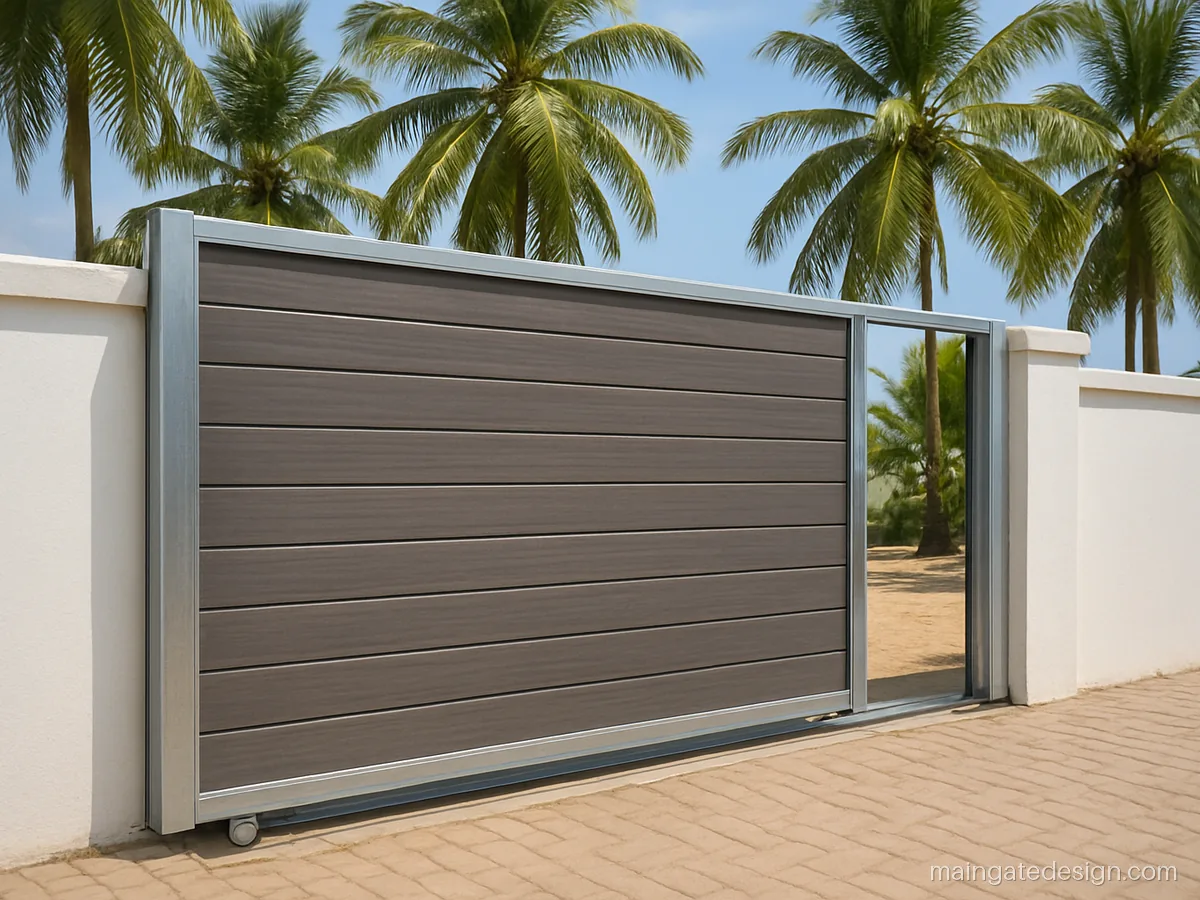

| Size | 10 x 6 ft, sliding |
|---|---|
| Material | GI frame, WPC planks |
| Finish | Grey teak WPC |
WPC planks do not swell or attract termites, so they suit houses near the sea. The galvanised frame adds a second layer of rust protection.
Fabricator tip: Use a hot dip galvanised frame near the sea and SS 304 screws for every plank.
Main Gate Design Wooden Double Door
A double door wooden gate is the most asked for style. Two leaves of 5 to 6 ft each are easier on the hinges than one big leaf, and you can open just one for walking in.

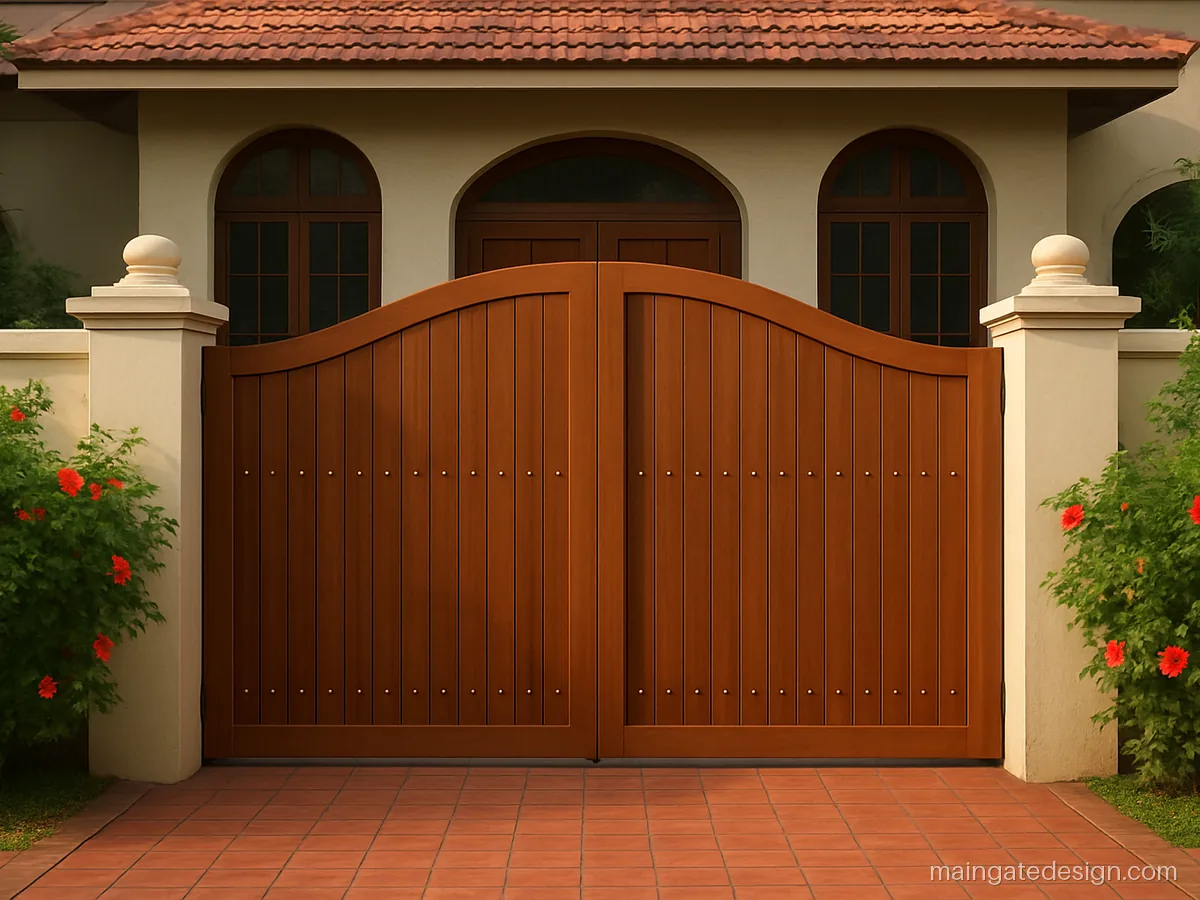

| Size | 10 x 7.5 ft, double |
|---|---|
| Material | Teak slats, MS frame |
| Finish | Teak PU, brass bolts |
The arch rises in the middle where the two leaves meet, which makes the entrance look grand. Suits a bungalow with arched windows.
Fabricator tip: Cut the arch on the MS frame first and fix slats after, so the curve stays true.

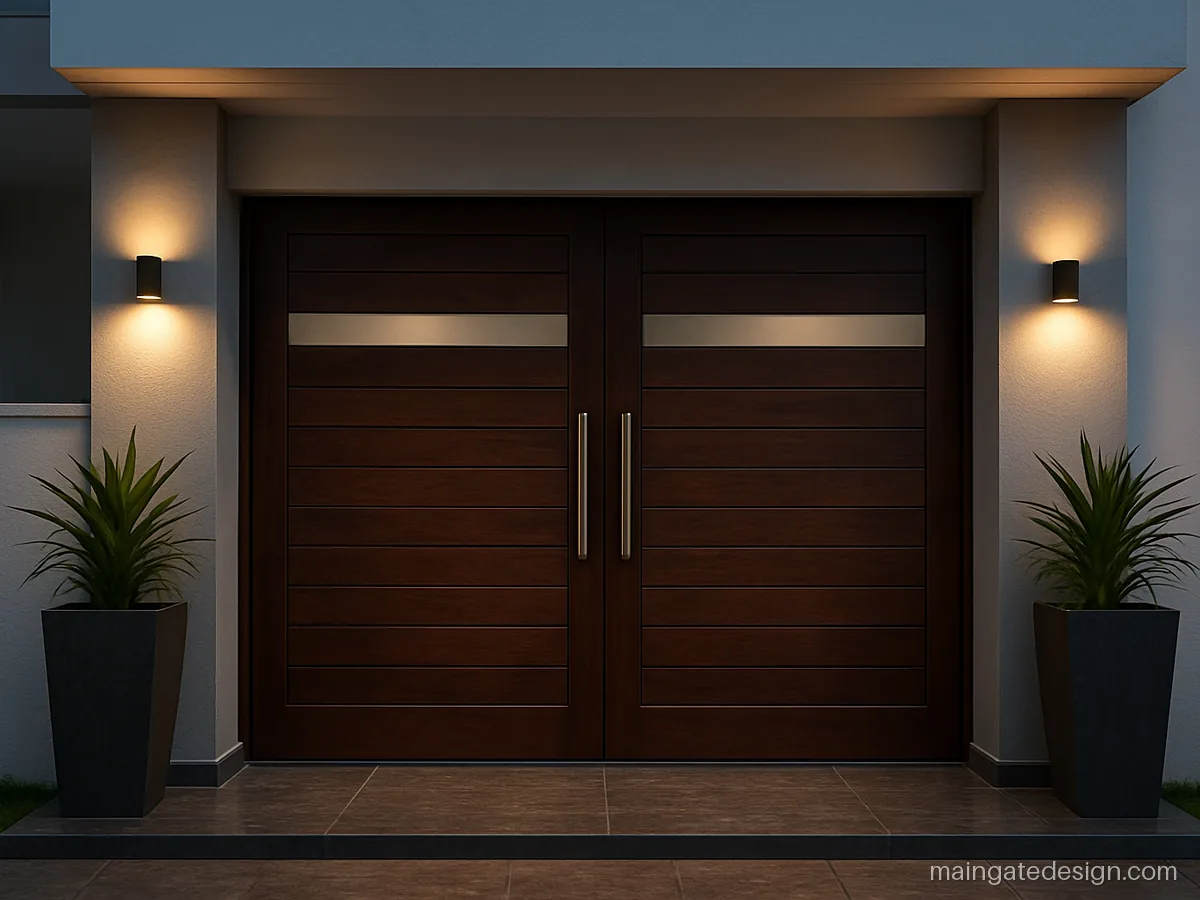

| Size | 8 x 7 ft, double |
|---|---|
| Material | MS frame, wood, glass |
| Finish | Dark oak, satin SS |
Thin frosted glass strips let light pass while keeping the porch private. Keep glass high so it is out of reach of balls from the street.
Fabricator tip: Use 8 mm toughened frosted glass set in a rubber gasket, never fixed with silicone alone.

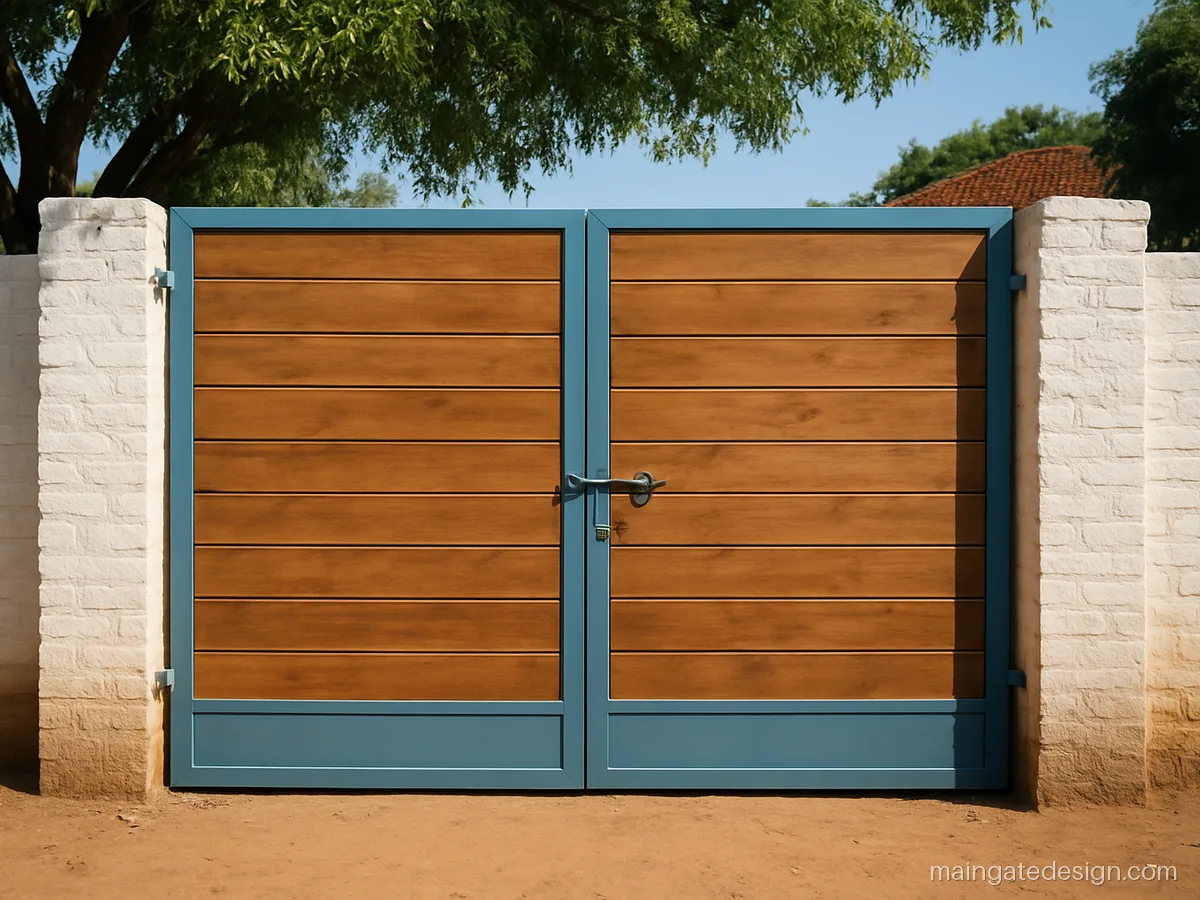

| Size | 10 x 6 ft, double |
|---|---|
| Material | MS angle + pine planks |
| Finish | Blue frame, wood |
A village style double door with wood planks inside a painted steel frame. It costs less than full wood and resists termites at the bottom.
Fabricator tip: Keep wood 100 mm above the ground with a steel bottom rail, and treat planks with termite polish.
Wood, HPL or WPC: Which to Choose
| Material | Look | Upkeep | Best for |
|---|---|---|---|
| Solid teak or sal | Richest grain | Oil or polish every year | Covered porch, dry areas |
| MS frame + wood slats | Modern, warm | Polish slats yearly, paint frame | Most city homes |
| HPL sheet | Smooth wood print | Wipe clean | Rain, full sun |
| WPC planks | Matt wood look | Wash only | Coast, termite areas |
Plywood is fine for indoor doors but not for an open main gate; even marine ply peels at the edges once water gets in.
Weather Care for an Outdoor Wooden Gate
- Seal all end grain, top and bottom, before the gate is hung. Water enters wood through the ends.
- Use exterior PU or a penetrating oil, not interior melamine polish. Recoat every 12 to 18 months, or sooner on the sunny side.
- Keep wood at least 100 mm above the ground and leave a drain gap under the gate.
- Fix wood to steel with SS screws. Plain screws rust and leave black stains in the grain.
- A small chajja over the gate doubles the life of the polish.
What to Tell the Fabricator and Carpenter
Give one drawing to both. The fabricator makes the MS frame in 40x40 or 50x50 mm box, primes it, and fits hinges or wheels. The carpenter then cuts and fixes the wood. Agree who drills the screw holes so the primer is not damaged. Heavy wooden leaves need ball bearing hinges and a floor stopper. For cost, the steel is weighed and charged per kg, the wood or HPL is charged by area, and hinges, locks and fitting are extra. Our price guide explains how to read a quote.
Main gate questions
Which wood is best for a wooden main gate design for home?
Teak is the most stable outdoors, with sal and good hardwoods next. Avoid softwood and plywood for an open gate. If budget is tight, use an MS frame with fewer wooden slats.
Is a main gate HPL sheet gate design better than real wood?
For upkeep, yes. Exterior HPL does not crack, rot or need polish and keeps its colour for years. Real wood feels richer and can be sanded and refinished, which HPL cannot.
How long does a main gate WPC gate design last?
Good WPC planks on a galvanised or well primed frame can last many years with only washing. The frame usually needs care before the planks do, so check it for rust each monsoon.
Should I choose a main gate design wooden single door or double door?
A single door suits a walk-in entrance up to 4 ft. For car openings, choose a double door; two lighter leaves sag less than one wide heavy leaf. See more on our double door main gate page.
Main gate lakdi ka design kitne saal chalta hai?
Agar lakdi ke end seal kiye hain, har saal polish hoti hai aur gate zameen se upar hai, to lakdi ka gate bahut saal chalta hai. Khule mein bina polish ke 3 se 4 monsoon mein crack aur sadan shuru ho jati hai.
Can I use wooden slats on an old iron gate?
Yes, if the frame is still straight and rust free. Grind off loose rust, prime, paint, then screw slats from the back. Check that the hinges can take the extra weight.
