A village house main gate design has a harder job than a city gate. It must take dust, heavy rain, animals and a tractor, and still open easily for years.
Below are 12 gates: village house gates, farm house gates, wide gates for tractors and simple strong gates. Each one lists size, material, finish and what to tell the welder. For city homes, see main gate design for home.
Village House Main Gate Design
A village home main gate design must handle dust, rain, cattle pushing on it and a tractor or two-wheeler going in. These three are strong, easy to repair and look good on a pakka village house.

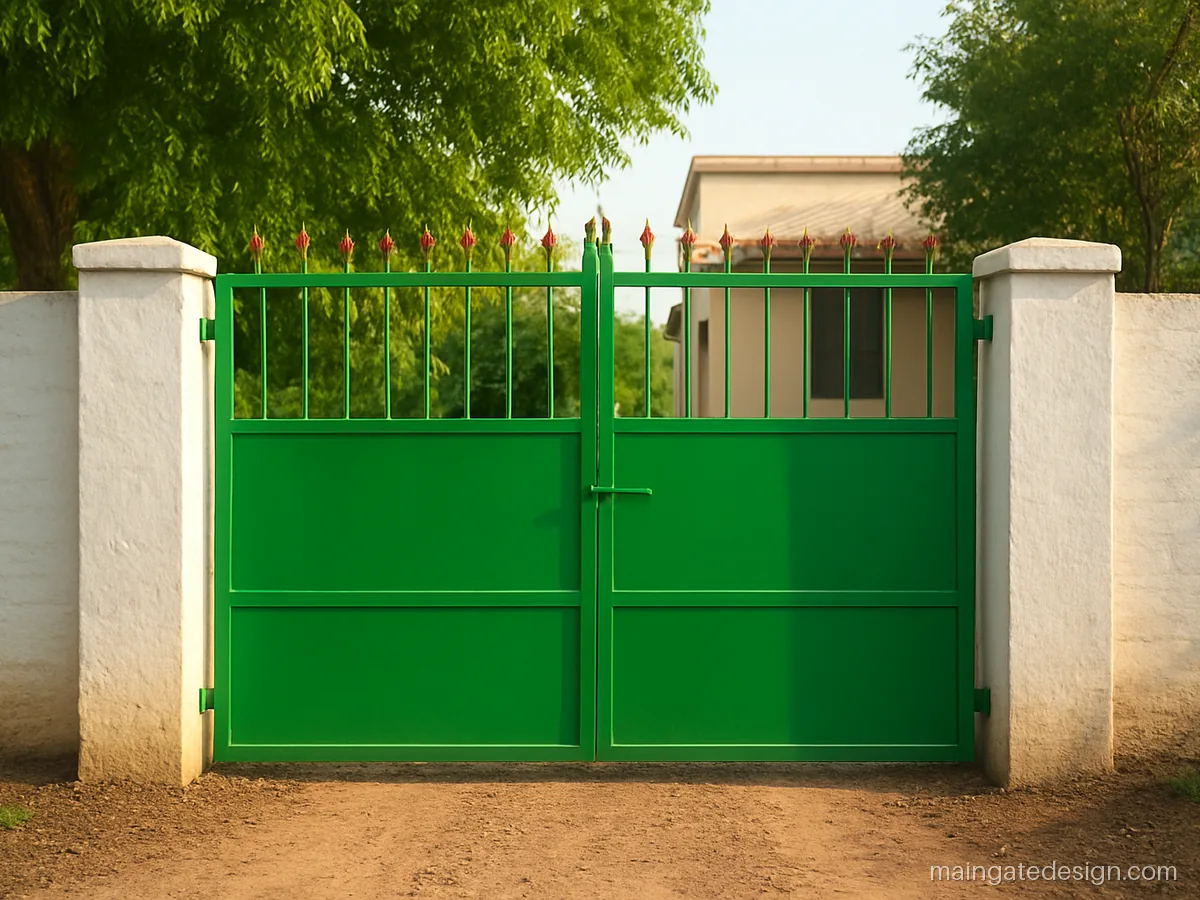

| Size | 10 x 6 ft, double |
|---|---|
| Material | MS 40x40 tube, 16g sheet |
| Finish | Green enamel, red tips |
Bars on top for air, a sheet in the lower half to keep goats and chickens out. A sensible main gate design for home village use.
Fabricator tip: Ask for a 2 inch drain gap at the bottom and a central drop bolt into a pipe sleeve in the floor.

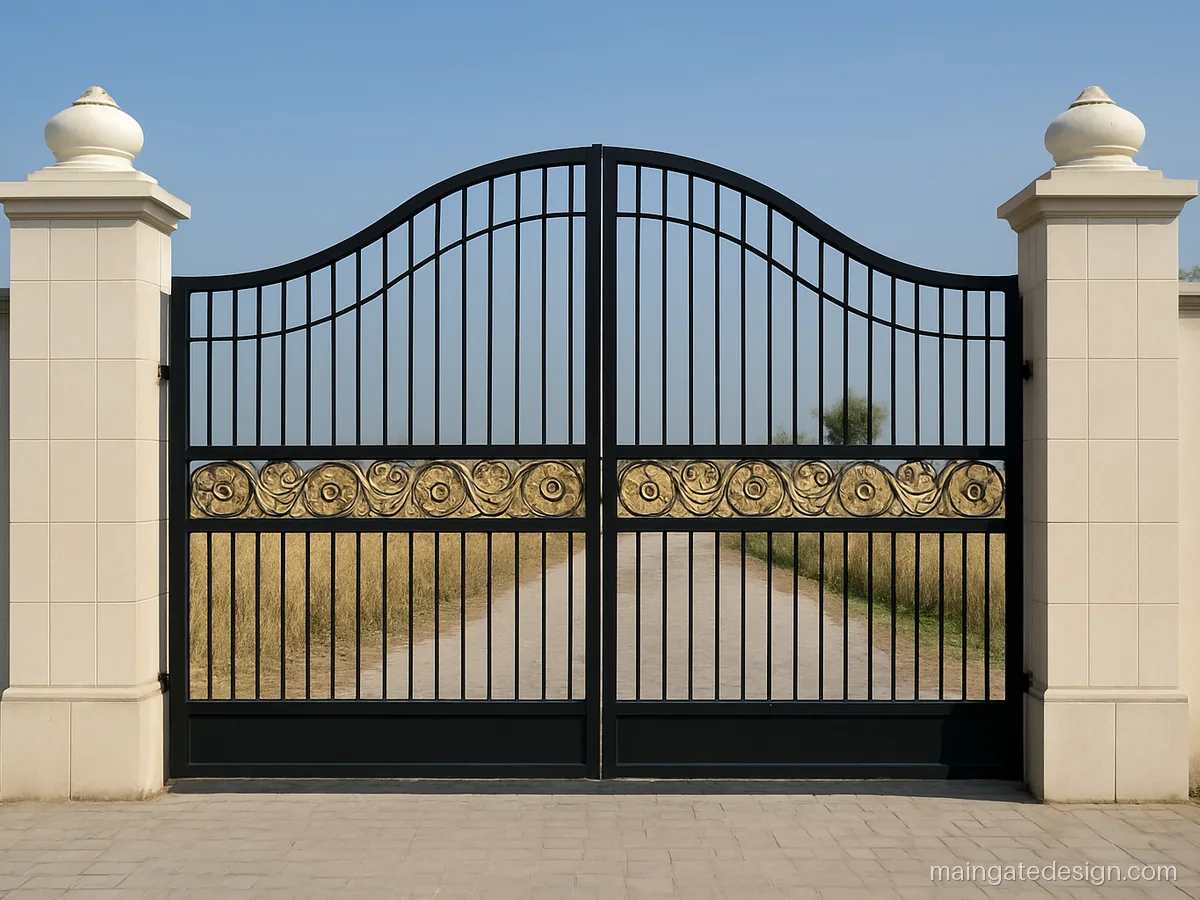

| Size | 12 x 8 ft, double |
|---|---|
| Material | MS 50x50 tube, scrolls |
| Finish | Black, gold scrolls |
A tall arched gate with gold painted scrolls, a common main gate design in Punjab kothis. It needs strong pillars because the top is heavy.
Fabricator tip: Ask for 18 inch square RCC pillars with a proper footing, and heavy ball bearing hinges for the tall leaves.

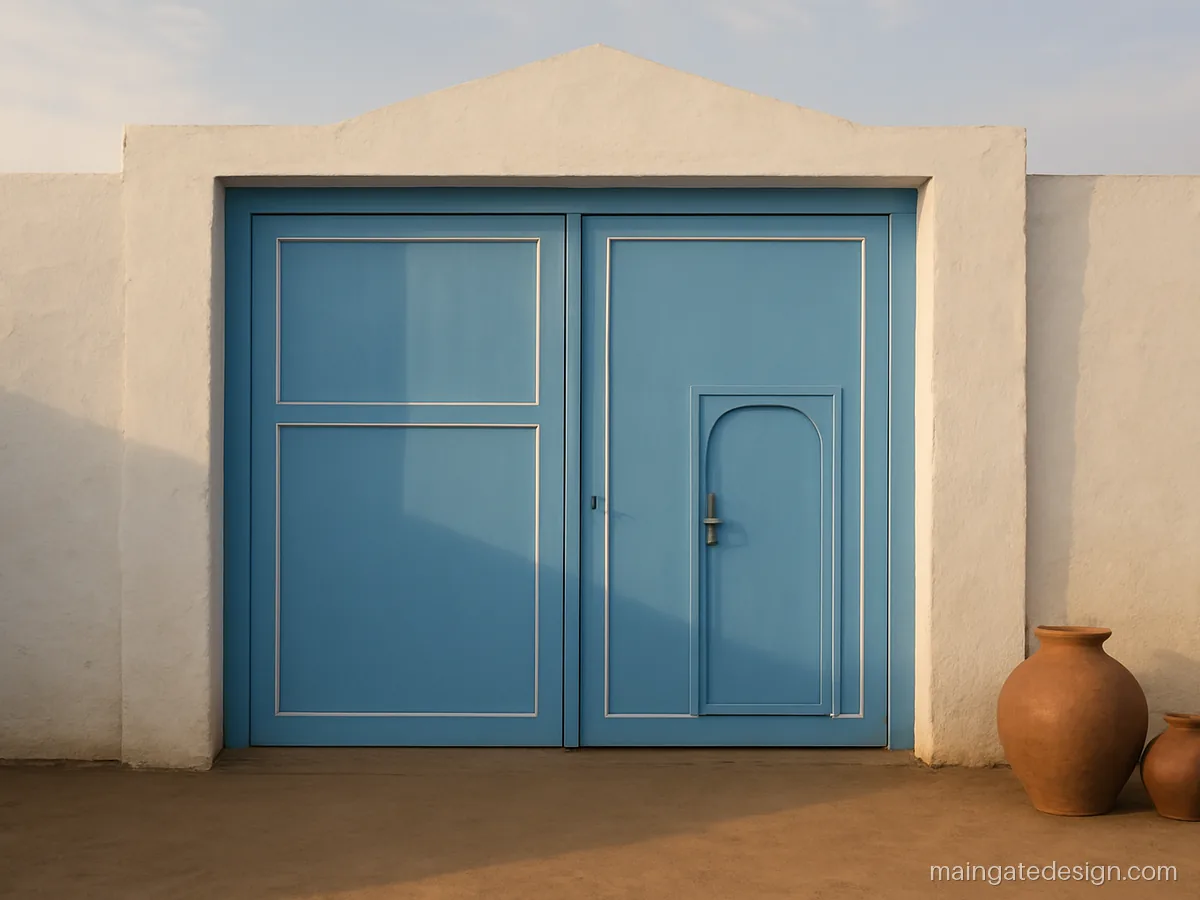

| Size | 11 x 7 ft, double |
|---|---|
| Material | MS 40x40 tube, 18g sheet |
| Finish | Sky blue, white trim |
A wicket door inside the big gate saves opening both leaves every time. Sky blue is popular and easy to touch up.
Fabricator tip: The wicket needs its own frame, two hinges and a latch; check it does not weaken the main leaf.
Farm House Main Gate Design
A farm house main gate design can be bigger and more open, since the house sits far back. Plan the gate together with the pillars and the approach road.

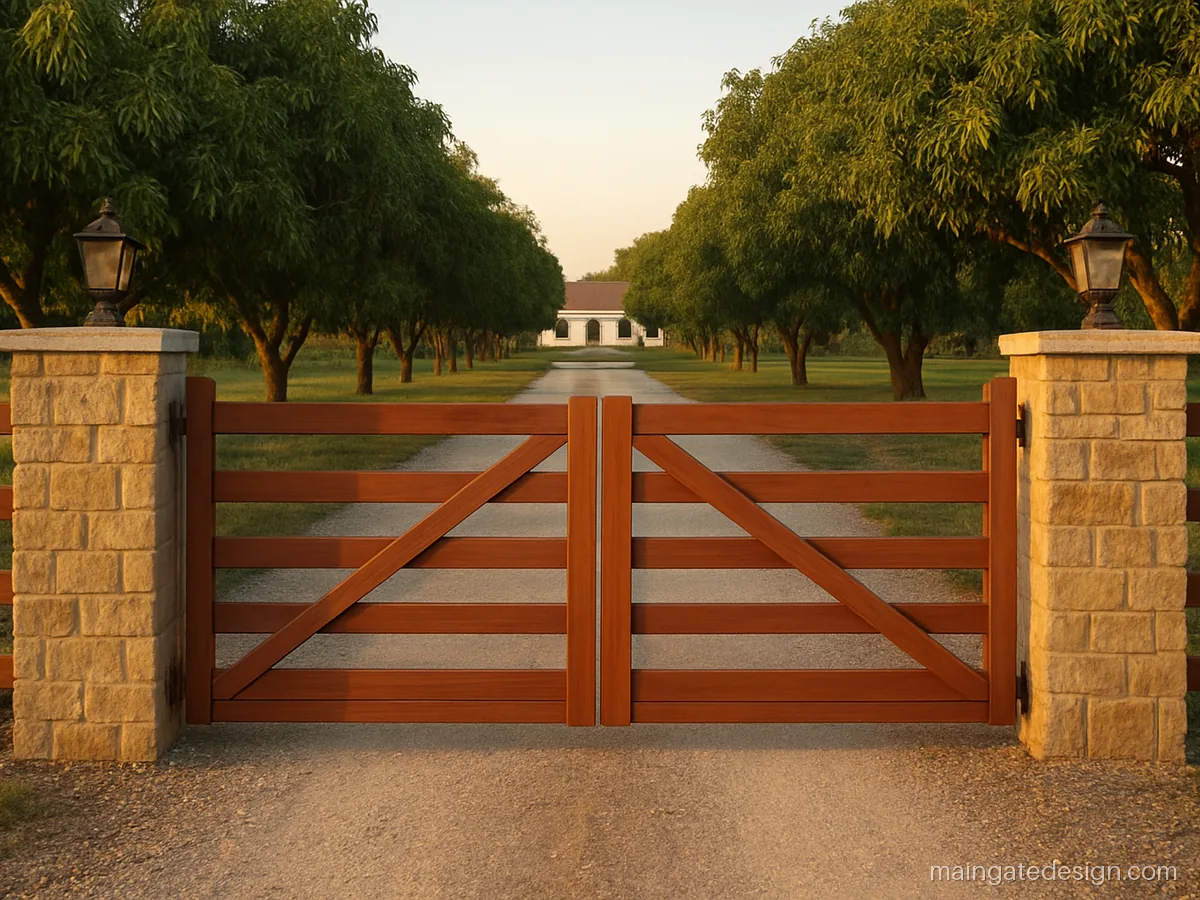

| Size | 14 x 5 ft, double |
|---|---|
| Material | MS 50x25 tube rails |
| Finish | Teak wood finish PU |
Horizontal rails in wood finish give a ranch look that suits open farmland and lawns.
Fabricator tip: Use a wood effect paint on MS, not real timber, and add a diagonal brace on each leaf to stop sagging.

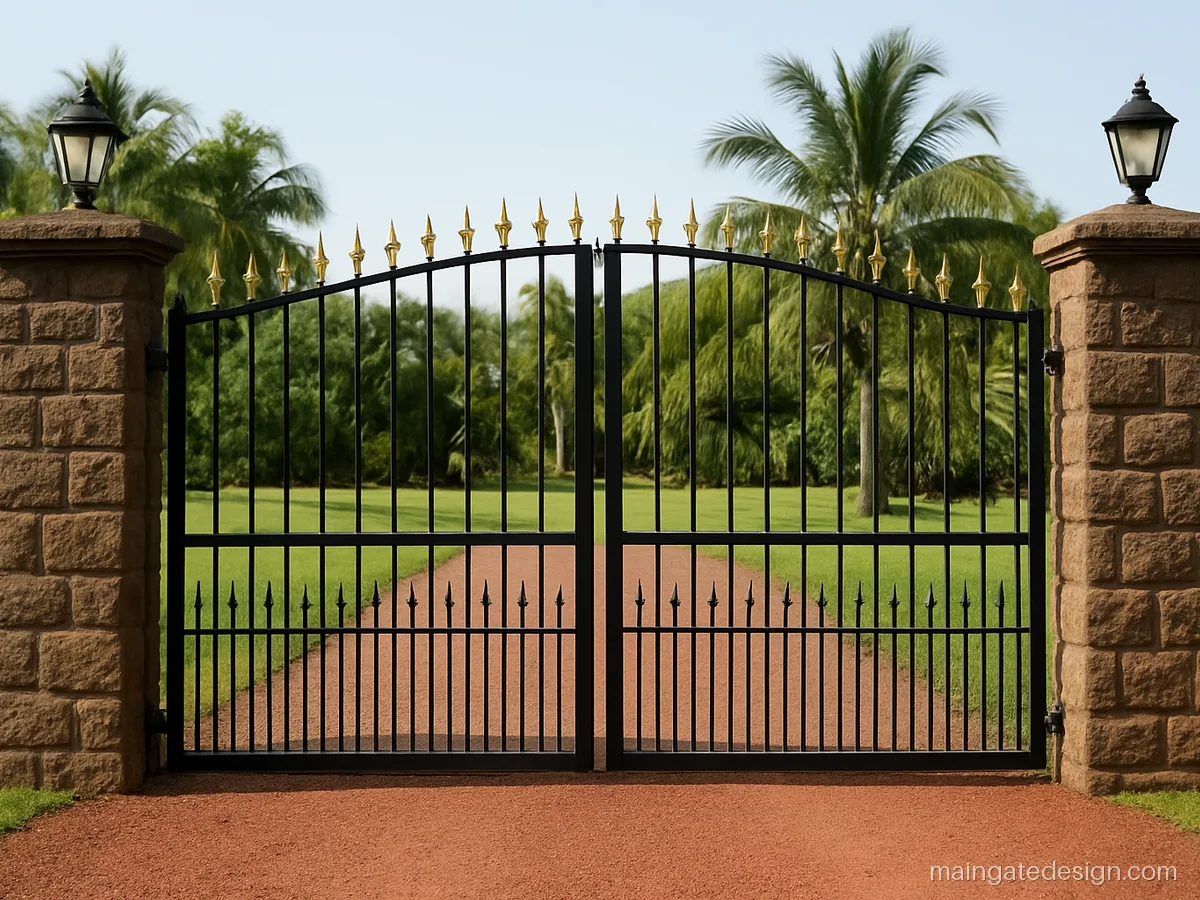

| Size | 14 x 7 ft, double |
|---|---|
| Material | MS 50x50 frame, 16mm bar |
| Finish | Matt black, gold spears |
Tall black spears between rough stone pillars. Simple to make, and it shows the green lawn behind.
Fabricator tip: Fix spear tips by full weld and seal the top of each hollow bar so rain water cannot get inside.

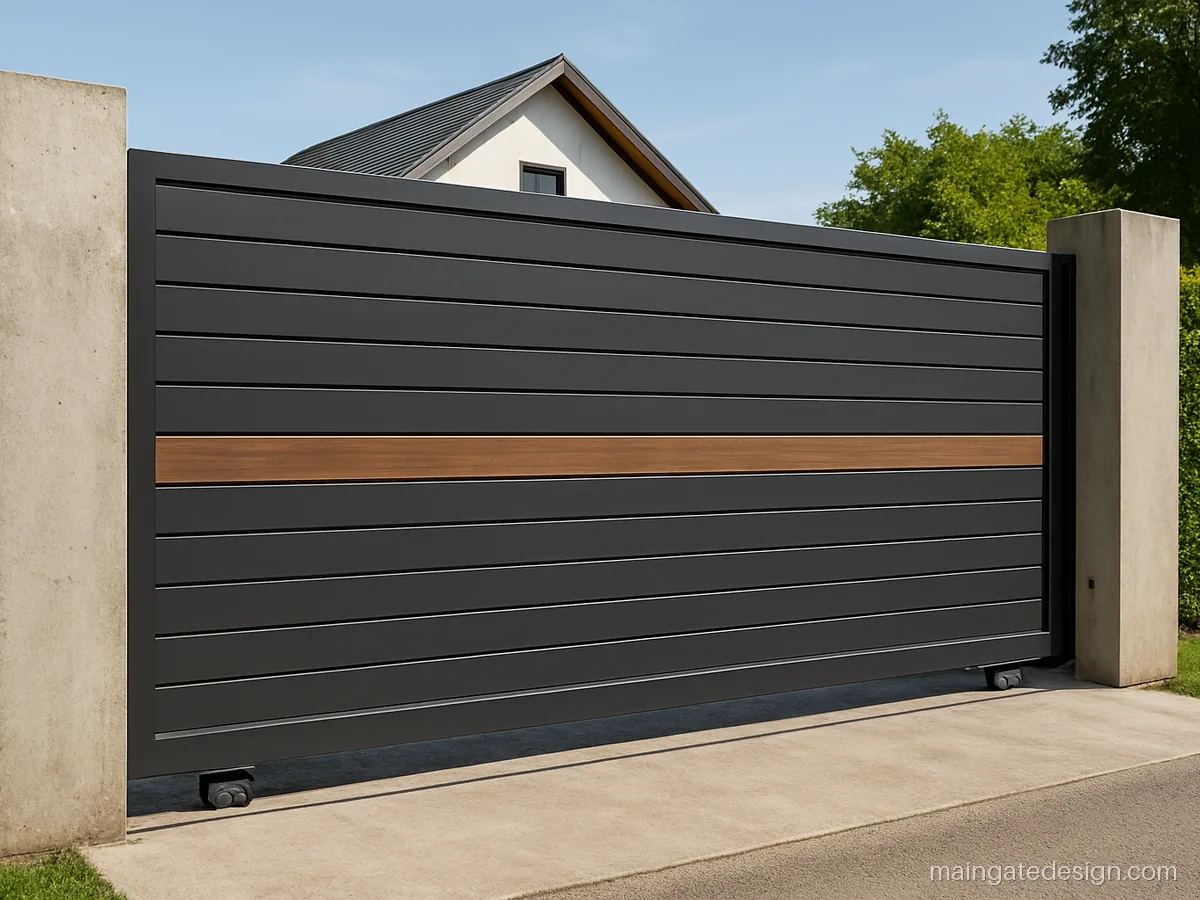

| Size | 16 x 6 ft, sliding |
|---|---|
| Material | MS 50x50, 100x25 slats |
| Finish | Charcoal and wood tone |
A sliding slat gate saves swing space on a long driveway. The slats give privacy from the highway side.
Fabricator tip: Lay the track on a concrete bed with a slope for drainage, and fit V groove wheels and a guide roller on top.
Main Gate Design in Village for Tractors
A tractor with a trolley needs a clear width of 12 to 14 ft and good turning room. Wide gates get heavy, so the frame and hinges matter more than the pattern. The gate size guide lists widths for every use.

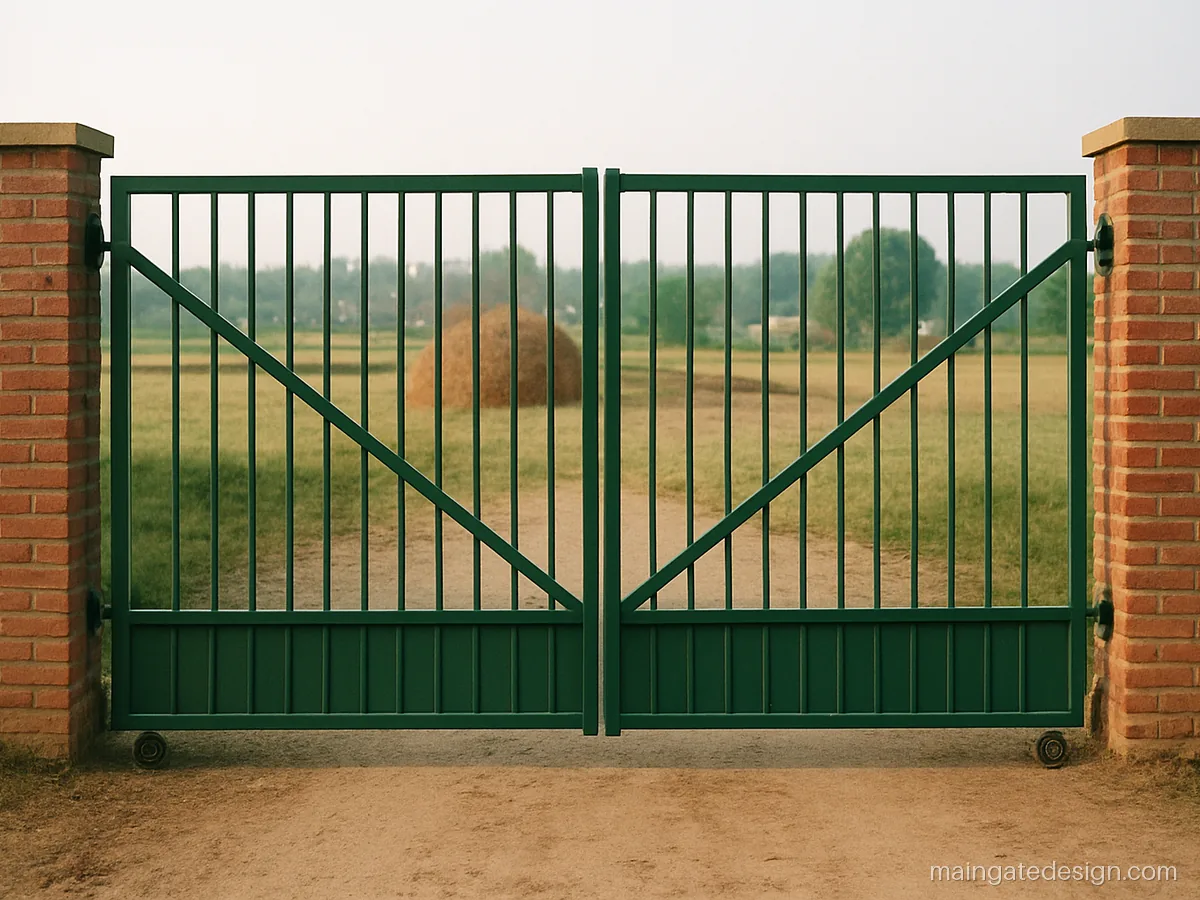

| Size | 14 x 7 ft, double |
|---|---|
| Material | MS 50x50 tube, braces |
| Finish | Grey primer, green coat |
Each 7 ft leaf has a diagonal brace and a wheel at the free end, so it does not drag even after years.
Fabricator tip: Use 50x50 mm tube, a support wheel on each leaf and a stopper in the floor at the centre.

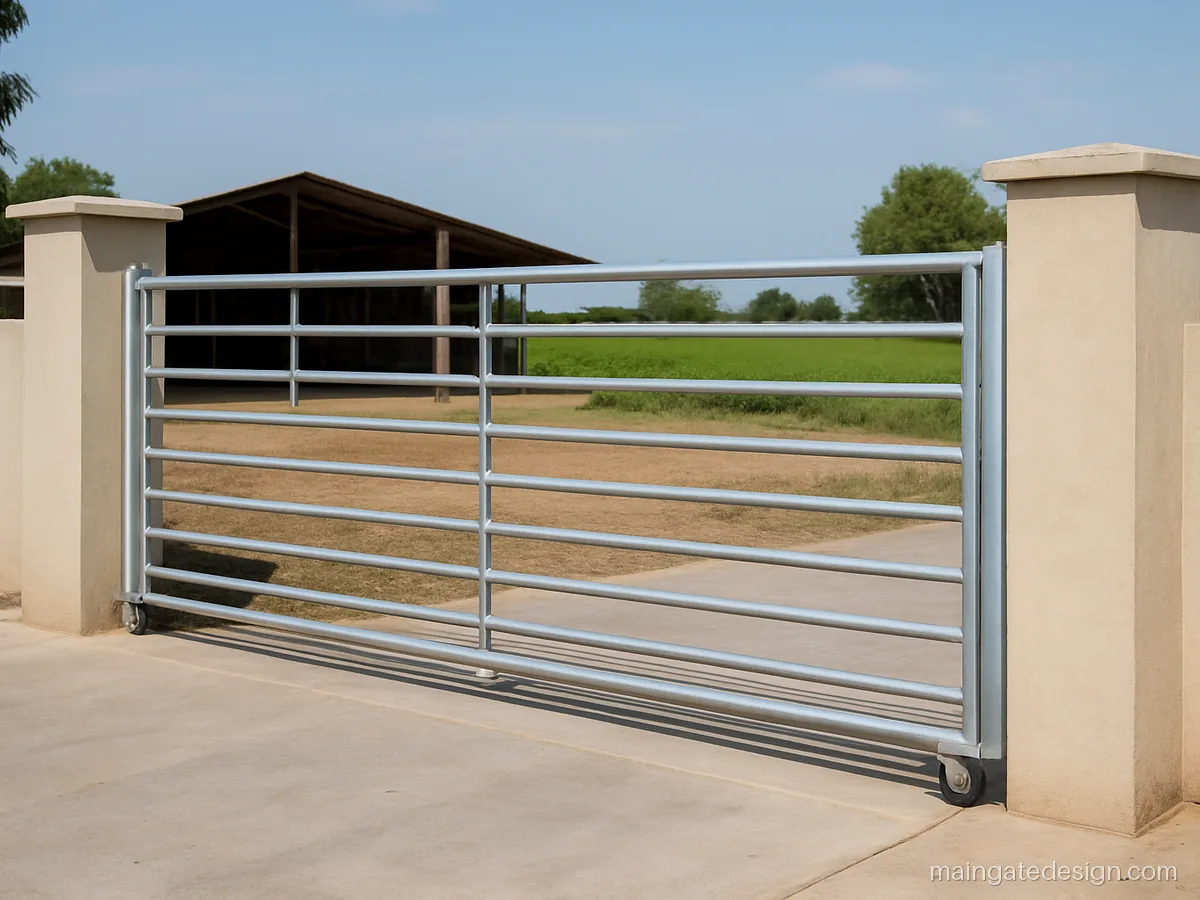

| Size | 15 x 6 ft, sliding |
|---|---|
| Material | MS 50 mm pipe frame |
| Finish | Silver aluminium paint |
A pipe sliding gate on a track opens the full width for a tractor and trolley. No leaf swings into the yard.
Fabricator tip: Keep the track flush with the floor so tractor tyres do not bend it, and grease the wheels each season.
| Size | 13 x 6 ft, folding |
|---|---|
| Material | MS 40x40 tube, bars |
| Finish | Orange red enamel |
Three leaves folding to one side give a wide opening without one huge, heavy leaf.
Fabricator tip: Hinges between leaves must be heavy, and the last leaf needs a wheel or it will sag.
Simple Village Main Gate Design Photos
These are the low cost, strong gates a local welder can make in a few days. For more budget ideas see simple low cost gates.

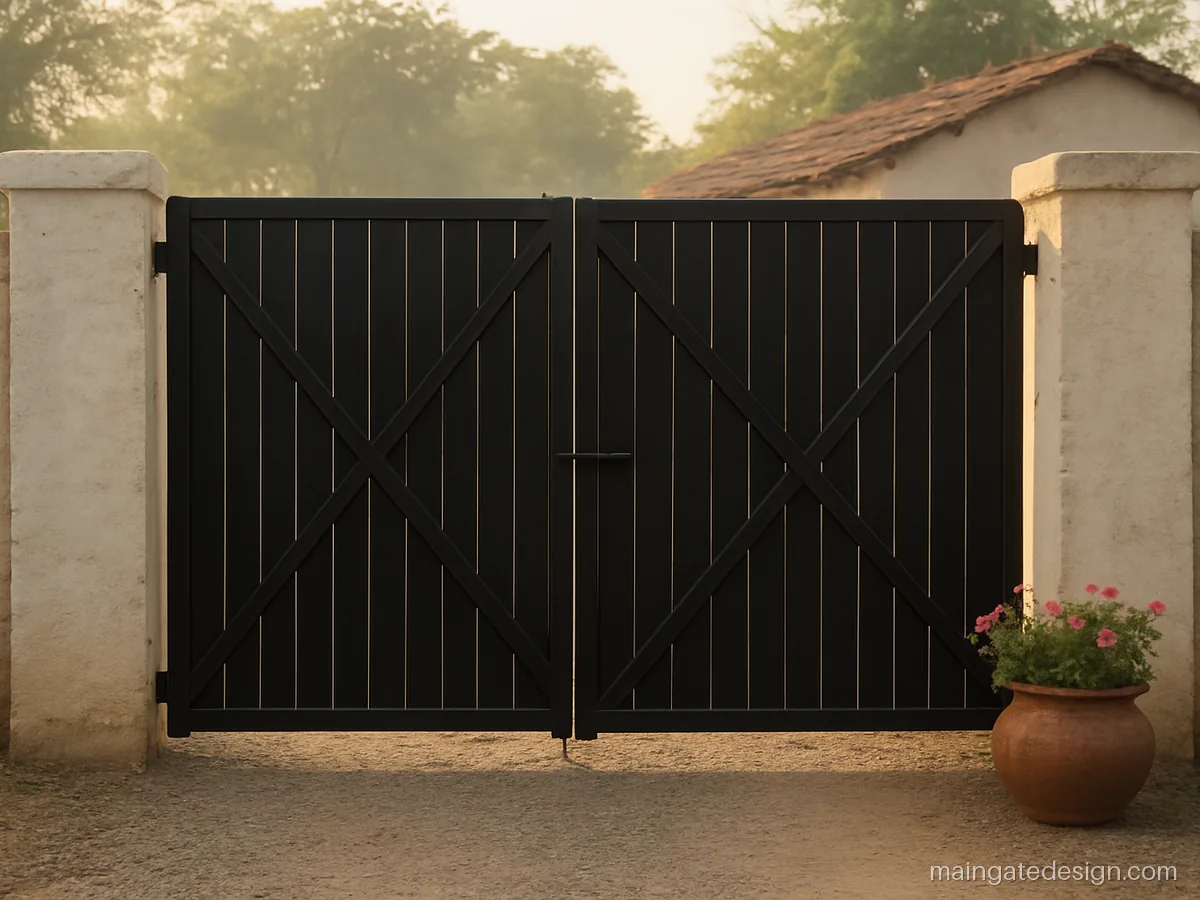

| Size | 10 x 5 ft, double |
|---|---|
| Material | MS 40x40 + 25x5 flat |
| Finish | Red oxide, black coat |
Flat strips with an X brace in each leaf. It uses little steel and stands up to rough use.
Fabricator tip: Ask for red oxide primer on all faces before assembly, then one black enamel coat.

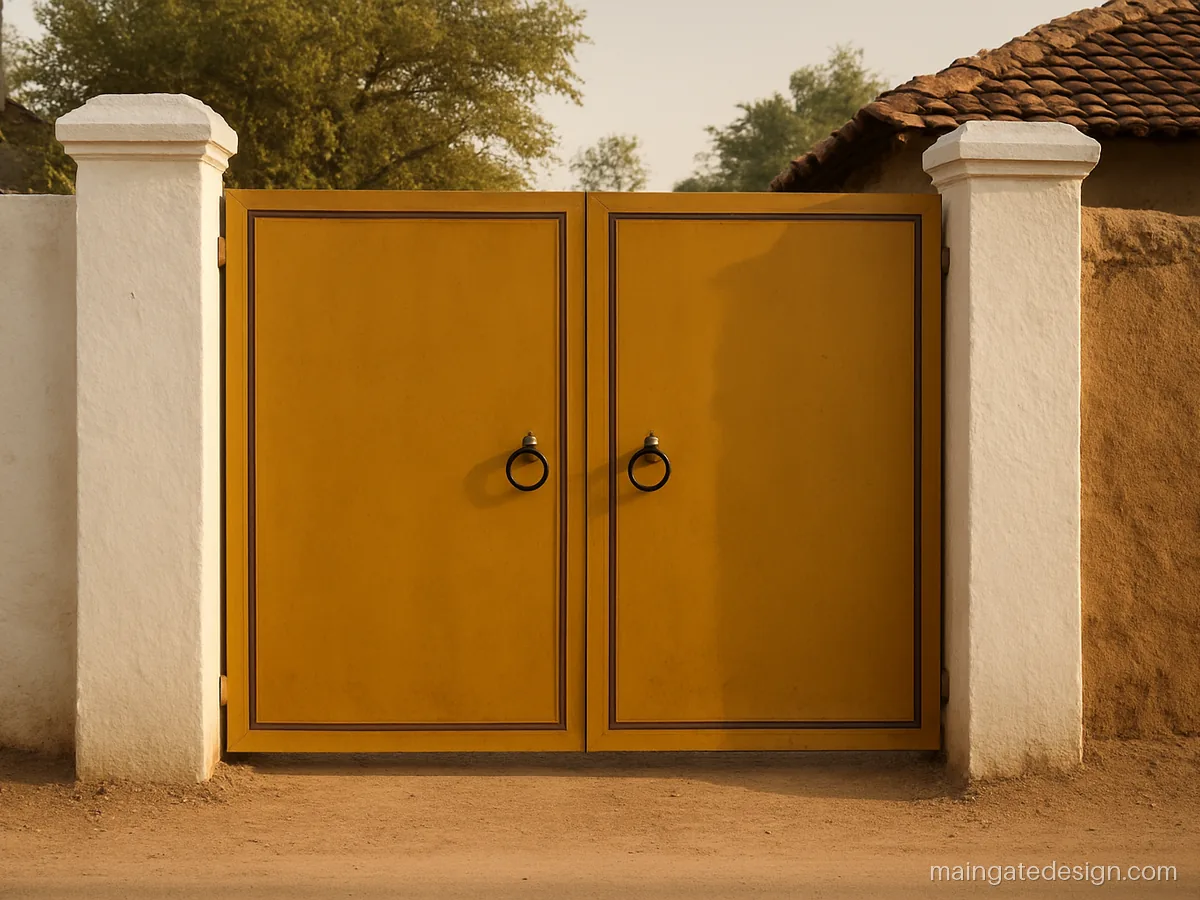

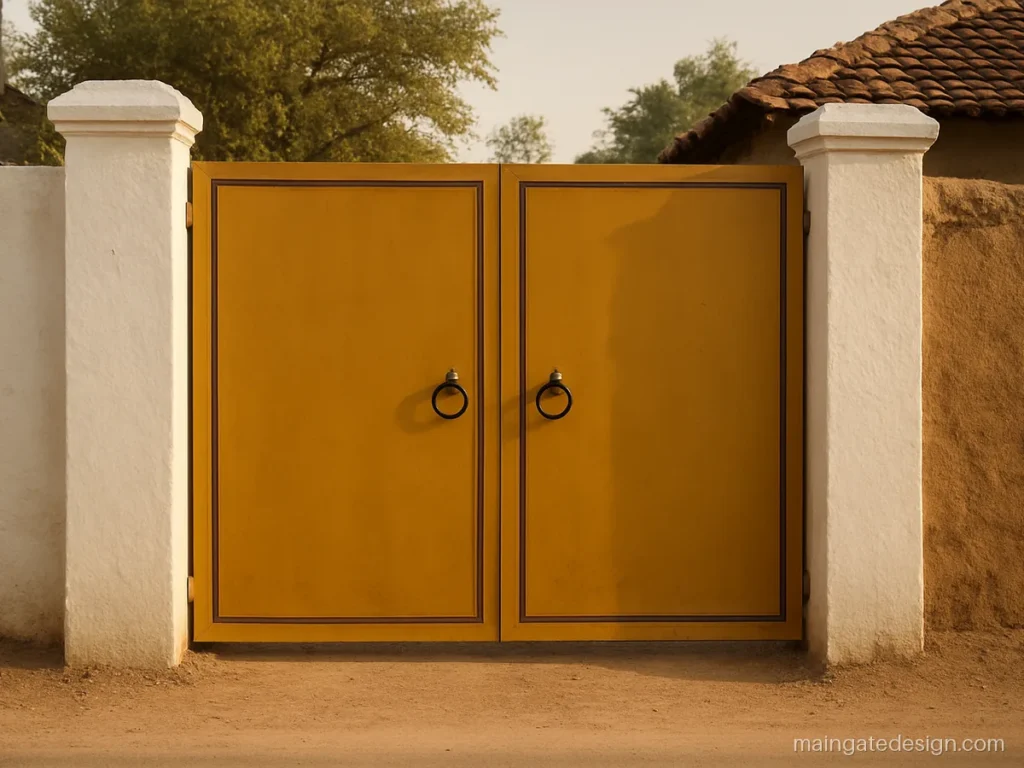

| Size | 9 x 6 ft, double |
|---|---|
| Material | MS 40x40 tube, 18g sheet |
| Finish | Yellow, brown border |
A full sheet gate with a painted border. It gives full privacy and is the cheapest to make.
Fabricator tip: Ask for stitch welds on both sides of the sheet and a stiffener rail at mid height.

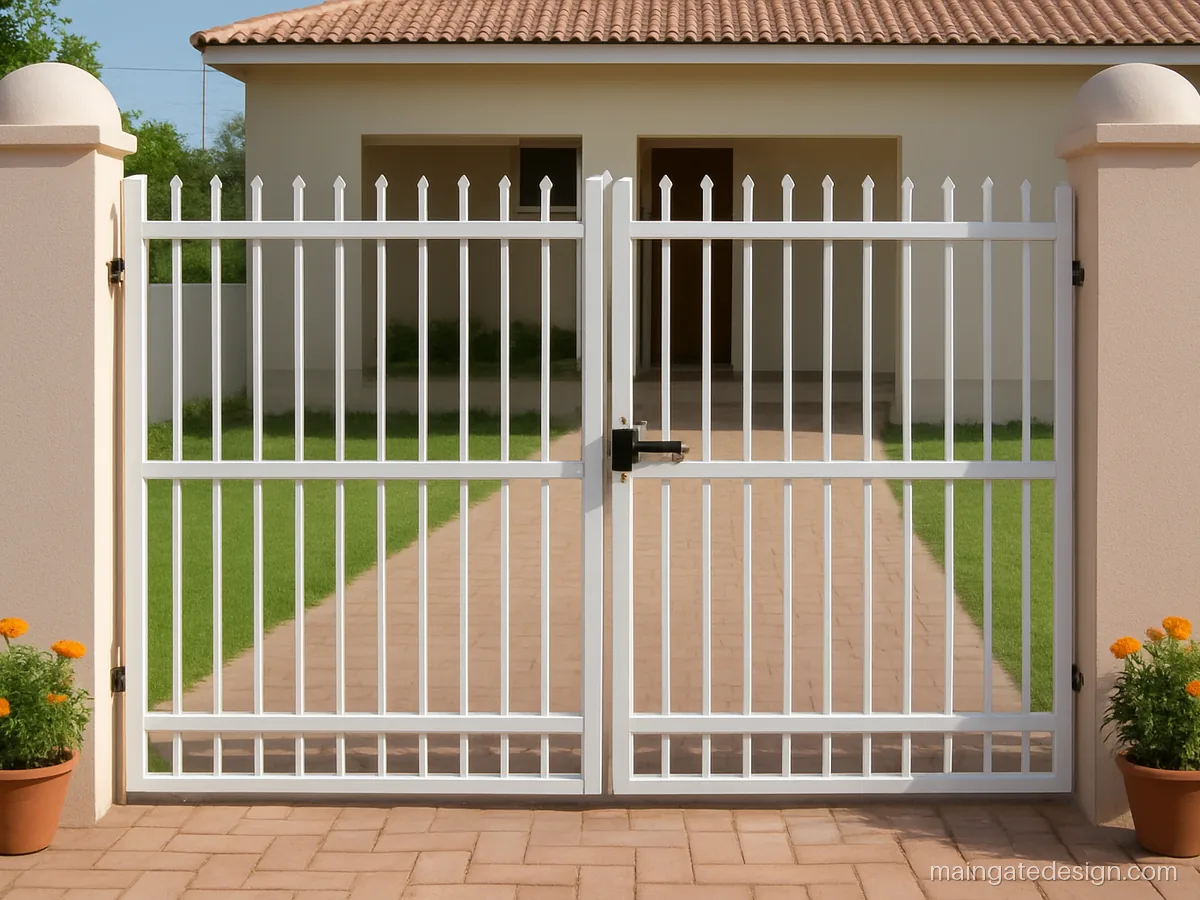

| Size | 10 x 6 ft, double |
|---|---|
| Material | MS 25mm pipe, 40x40 |
| Finish | White enamel |
Round pipe bars painted white look clean and are easy to repaint. A quick gate for a new village home.
Fabricator tip: Close the top of every pipe with a cap so rain water does not collect inside.
How to Choose a Main Gate Design for Village Homes
| Use | Clear width | Frame |
|---|---|---|
| Walk in and bikes | 8 to 10 ft | MS 40x40 tube |
| Car or jeep | 10 to 12 ft | MS 40x40 or 50x50 tube |
| Tractor and trolley | 12 to 14 ft | MS 50x50 tube, braced |
| Farm house drive | 14 to 16 ft | MS 50x50, sliding or folding |
Measure the widest thing that will pass, then add room to turn. A tractor needs a straight run in front of the gate. If the lane is narrow, make the gate wider than the tractor, not just equal to it.
What to Tell the Welder and How to Care for It
- Pillars at least 12 inch square in RCC, deeper for wide gates.
- Wheel at the free end of any leaf over 6 ft.
- A 2 inch gap above the ground so water and mud do not reach the bottom rail.
- Red oxide primer on all faces before painting.
Cost is weight of steel times the welder's rate per kg, plus paint, hinges, wheels, lock, fitting and transport. Village gates are usually heavier than city gates, so ask for the weight up front. Grease hinges before the rains and repaint the bottom rail every two years. For rough use, read about factory and school gates, which face the same wear.
Main gate questions
What width is right for a village main gate design with a tractor?
Keep a clear width of 12 to 14 ft. If the tractor has to turn into the gate from a narrow lane, go wider. Use braced leaves and wheels so the wide gate does not sag.
Which is better for a farm house main gate design, sliding or swing?
Sliding saves space and suits long gates over 14 ft. Swing gates are cheaper and simpler. On a slope or muddy ground, a swing gate with wheels is often easier.
What is a simple village main gate design that lasts long?
Bars on top with a sheet in the lower half, in MS 40x40 tube, with red oxide primer and enamel paint. It keeps animals out, lets air in and is easy to repair locally.
What kind of main gate design in Punjab village homes is common?
Tall double gates with arched tops, gold painted scroll work and big tiled pillars are common in kothis. Simpler homes use plain sheet or bar gates in bright colours.
How do I stop a wide village gate from sagging?
Use a thick frame, a diagonal brace in each leaf, heavy hinges and a support wheel at the free end. Strong pillars with a deep footing matter as much as the gate.
